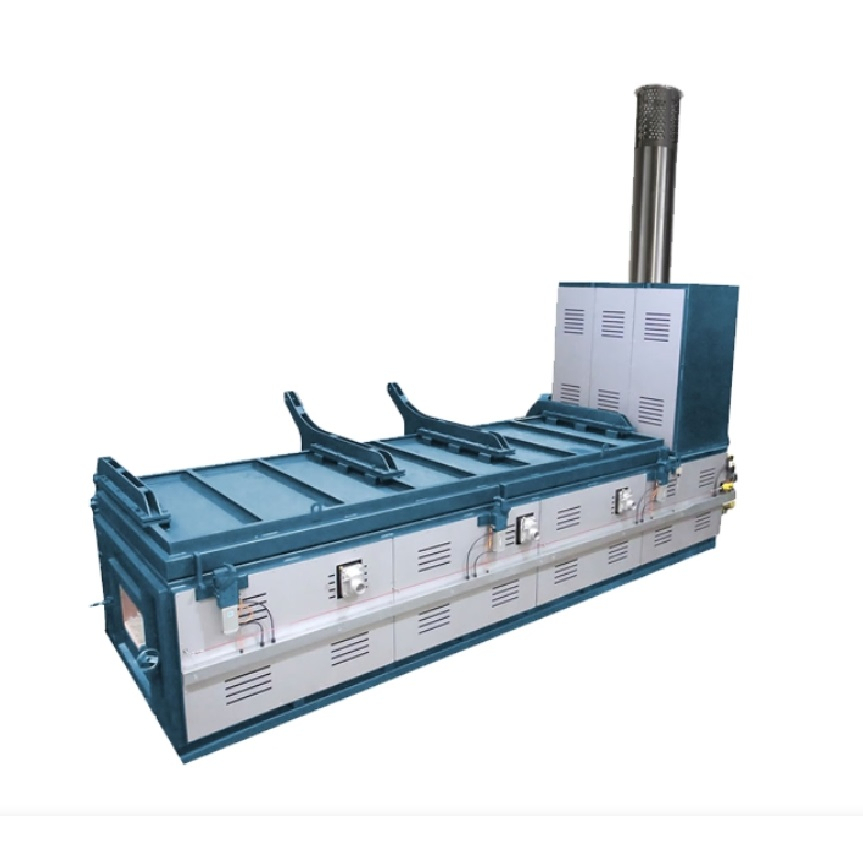

Industrial Refractory Furnace Clinical Waste Incinerator Biomedical Waste

High-temperature brick-lined combustion chamber

$39999.00

Engineered for industry professionals, this heavy-duty refractory furnace features a high-grade, brick-lined chamber expertly designed to withstand extreme temperatures and endure years of intensive use. Perfect for metalworking, ceramics, glass-blowing, or waste incineration, it offers exceptional heat retention and operational efficiency, making it a reliable choice for demanding applications. Customize your workspace with this furnace’s spacious interior, available in multiple sizes to suit your needs. The sleek exterior is finished in a durable industrial grey to complement any workshop setting.

Product Description

The machine is equipped as standard with an easy to use touch screen PLC controller, allowing for full configuration of machine settings should you wish.
This system incorporates, high-low burn cycles and a data logging facility to monitor the machine's performance.
Equally if the user wishes to deviate from the touch screen they can simply press the 'Start' button, the machines fully automatic cycle will begin.
Once this cycle has started, the machine needs little if any human intervention, the operator can leave the machine unattended to completion and the subsequent cool down process safely finalises.
The first is to aid the burning process by injecting additional combustion air to supplement the cremation process, reduce fuel and increase burn times.
The second is to safely and rapidly cool the refractory wall after a cycle completion this increases turnaround times dramaticaly.
Key Features
Top Loading.
Protective outer ram bar.
Touch Screen Controller.
Integrated excess air controller.
Addfield machines are independently proven to save 40% on fuel, compared with other manufacturers, saving you money on every cremation and increasing profitability.
Biggest in the low capacity range.
Fast, efficient, clean horse cremation.
EU compliant.
Robust thick steel construction up to 10mm.
Thick, fuel-efficient refractory lining.
Three layers of insulation.

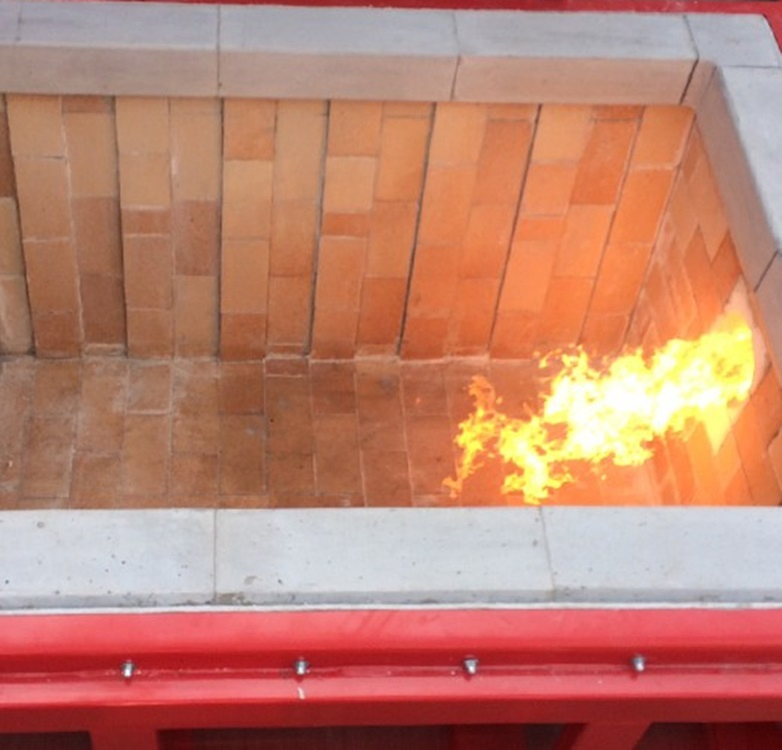

Reliable brick-lined refractory.
After care support

Clinical Waste Incinerator Biomedical Waste

Machine Specification



External L x W x H (mm)

 4245 x 3530 x 2145/4030

Internal L x W x H (mm)

 2445 x 1600 x 920

 Chamber Volume (m3)

4.18

 Weight (approx tonnes)

6.5

 Max Load Capacity (kg)

2000

Nominal Burn Rate UK* (kg/hr)

 <45

 Burn Rate [Export Only]* (kg/hr)

 50 - 75

                                                                          Thermal Capacity (kW)

288

 Power Supply 50/60 hz (three phase)

 220 - 250v
 (single phase 110-120v on request)

 Door Aperture

 2385 x 1570

Control Panel

 AI or PLC

 Fuel Types

 Diesel, LPG, N-Gas

 Insulation Board

 25mm Super-wool

 Insulation Fire Brick

 Grade E23

 Fire Brick (Alumina)

42.50%
