Engineering the Future: The Ultimate Guide to Pipe Fabrication and Machining Tools
INDUSTRIAL SUPPLIES
9/25/20256 min read
The Foundations of Pipe Fabrication: Why Tools Define Infrastructure
When we look at the sweeping skylines of modern cities, the invisible networks below and within those structures often remain uncelebrated. These networks—pipelines carrying water, gas, oil, steam, and countless other fluids—exist only because specialized machinery allows us to cut, bend, weld, and groove metal and plastic pipes with accuracy. The machines may not attract headlines, but they dictate the reliability of critical systems.
Pipe fabrication is a blend of craftsmanship, engineering, and technology. While ancient builders used rudimentary chisels and heat to shape clay pipes, today’s industries rely on threading machines, roll grooving equipment, pipe benders, and beveling machines with digital precision. Every leak-free connection, every aligned joint, and every bend at the perfect angle exists because of these tools.
This guide explores the spectrum of pipe machinery, diving into each category with depth, while connecting their practical relevance to industries worldwide.

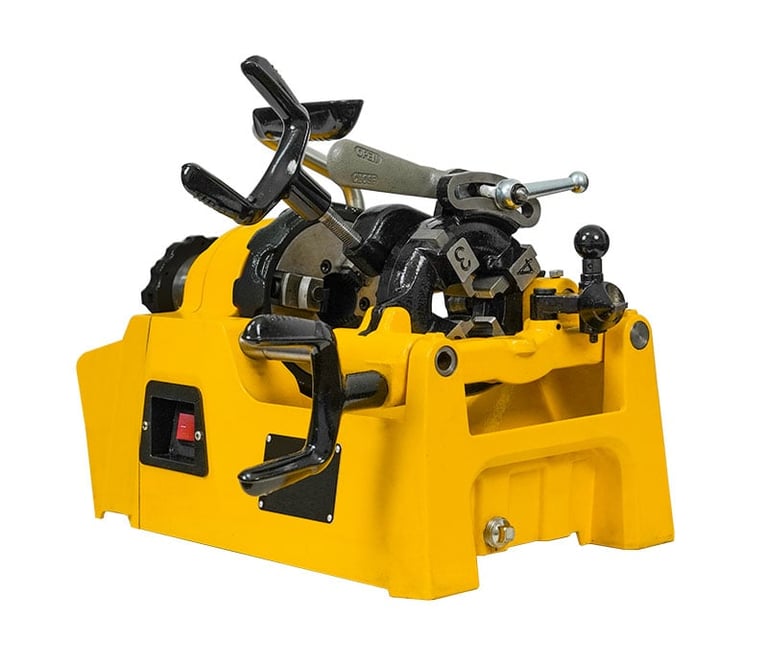

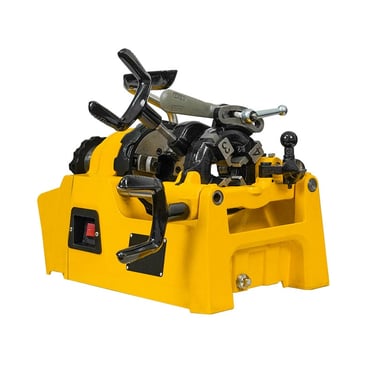

Threading Machines: Turning Pipes into Precise Connectors
A threading machine is often the first stop in the pipe preparation process. Without it, pipes cannot be joined securely through threaded fittings.
The Evolution of Pipe Threading
Early Days: Manual threading required significant skill and was often inconsistent.
Mechanization: By the mid-20th century, powered threading machines became standard, improving repeatability.
Digital Integration: Today’s threading machines often include automated oilers, torque controls, and quick-change die heads.
Key Benefits of Modern Threading Machines
Consistency: Ensures each thread is uniform and meets industry standards.
Time-Saving: Industrial threading machines can process dozens of pipes in an hour.
Durability: Threads cut with precision reduce the risk of leaks in high-pressure systems.
Industrial Applications
Fire protection systems where reliability under pressure is crucial.
Oil and gas pipelines where threading must withstand corrosive environments.
HVAC systems requiring consistent fittings for air and water circulation.
Threading machines remain indispensable, even in an age of welding and grooved couplings, because threaded joints are still the most common connection method in small to mid-sized piping.
Dies: The Unsung Heroes of Threading
A machine is only as good as its cutting edge, and dies provide that edge.
Types of Dies
Round Dies: Fixed dimensions, ideal for single-size threading.
Adjustable Dies: Flexible, allowing operators to fine-tune tolerances.
Chaser Dies: Used in die heads, replaceable for continuous productivity.
Material Choices
Carbon Steel Dies: Affordable but wear quickly.
High-Speed Steel (HSS): Superior durability for heavy-duty use.
Coated Dies: Titanium nitride coatings extend life in abrasive environments.
Maintenance Considerations
Regular sharpening and replacement cycles are non-negotiable. A dull die leads to damaged threads, wasted material, and costly rework.
Dies may be small, but in the high-volume world of industrial threading, they determine whether connections succeed or fail.
Drain Cleaning Machines: Maintaining Flow and Preventing Disaster
No pipe network operates indefinitely without maintenance. Blockages are inevitable, and drain cleaning machines are the solution.
Types of Drain Cleaning Machines
Handheld Drum Machines: Perfect for residential and light commercial applications.
Sectional Cable Machines: Allow operators to add or remove sections for long-distance clogs.
Sewer Jetters: Use high-pressure water to clear stubborn obstructions.
Large Sewer Machines: Capable of handling municipal-level blockages.
Why They Matter
Prevent Downtime: A blocked line can halt an entire industrial process.
Reduce Health Hazards: Stagnant wastewater leads to bacterial growth.
Cost Efficiency: Cleaning machines prevent costly excavation or pipe replacement.
Case studies in municipal wastewater management reveal that regular use of drain cleaning machinery can reduce annual maintenance costs by up to 40%.
Pipe Vises and Stands: Stability Equals Accuracy
Precision begins with stability. Without solid vises and stands, threading and cutting become dangerous and inaccurate.
Types of Pipe Vises
Yoke Vises: Fast clamping, ideal for workshops.
Chain Vises: Can hold irregular or very large pipes securely.
Bench Vises: Compact solutions for lighter tasks.
Pipe Stands
Tripod stands with rollers are the industry favorite, providing portability without sacrificing balance. Heavy-duty stands allow operators to rotate pipes during cutting or threading, minimizing fatigue.
Impact on Productivity
A stable pipe allows the operator to work faster, safer, and with more confidence. Accidents caused by unstable workpieces are among the most common in pipe fabrication.
Pipe Cutting and Fabrication: From Raw Material to Finished Part
Cutting is not just about dividing metal. It’s about creating clean, burr-free ends prepared for joining.
Cutting Technologies
Cold Cutting Machines: Safe for oil and gas pipelines where sparks are dangerous.
CNC Pipe Cutting Systems: High-precision tools that can handle large volumes automatically.
Portable Pipe Cutters: Lightweight and critical for fieldwork.
Why Clean Cutting Matters
Prevents leaks by ensuring smooth mating surfaces.
Reduces stress concentrations that could cause cracks.
Saves time in subsequent stages such as beveling or threading.
A poorly cut pipe can derail an entire project. Modern fabrication demands precision at this earliest stage.
Hole Cutting Tools: Expanding Possibilities
When branch lines or monitoring equipment must be added, hole cutting tools step in.
Common Tools
Magnetic Drill Presses: Clamp to steel pipes for stable drilling.
Annular Cutters: Provide cleaner holes than twist drills.
Hole Saws: Versatile, especially for softer metals and plastics.
Applications
HVAC systems requiring multiple outlets.
Fire sprinkler systems with frequent branch connections.
Chemical processing plants needing instrumentation access points.
Clean, precise hole cutting saves time and reduces the risk of leaks during later assembly.

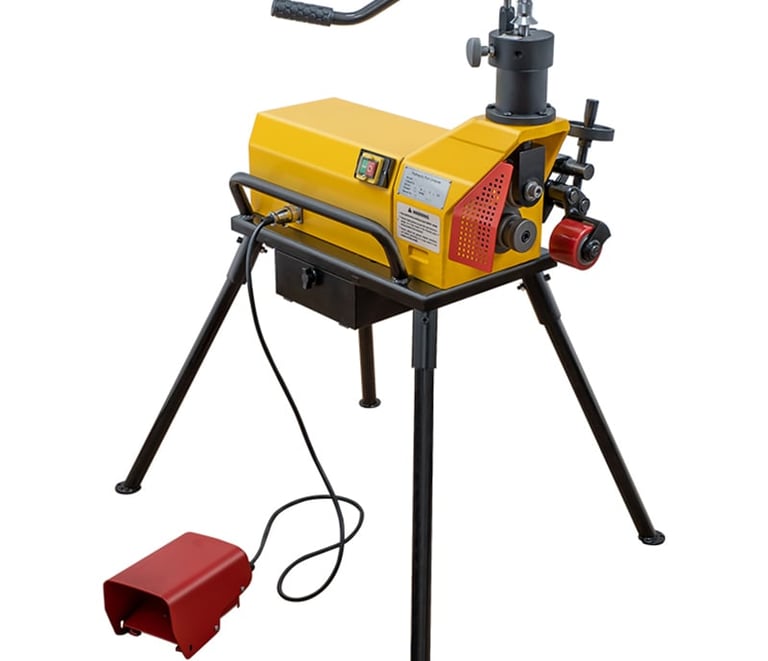

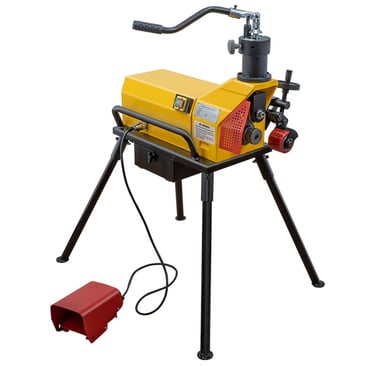

Roll Grooving: Efficiency in Large-Scale Projects
Roll grooving transformed how pipes are connected, especially in large systems.
How Roll Grooving Works
A grooving machine presses a circular groove into the pipe end. A mechanical coupling then joins the grooved pipes without threading or welding.
Benefits
Speed: Cuts installation time dramatically.
Flexibility: Easy to disassemble for repairs or reconfiguration.
Safety: Reduces heat-related hazards compared to welding.
Key Industries
Fire protection systems
Chilled water systems in high-rise buildings
Industrial piping with frequent modifications
Roll grooving is now a global standard, particularly where project speed is paramount.
Pipe Beveling Machines: Preparing for Strong Welds
Beveling machines shape the end of a pipe to a precise angle, ensuring strong weld penetration.
Beveling Methods
Manual Beveling Tools: Still used for quick field adjustments.
Stationary Beveling Machines: Offer high repeatability in workshops.
Portable Bevelers: Ideal for on-site oil and gas work.
Why Beveling Matters
Stronger Welds: Full penetration reduces weak points.
Safety: Proper beveling prevents catastrophic failures.
Time Savings: Consistent bevels reduce rework during welding.
In sectors like petrochemicals, beveling machines are literally safety equipment, not just productivity tools.
Pipe Benders: Giving Shape to Structure
Bending allows pipes to follow architectural or mechanical design without unnecessary joints.
Types of Pipe Benders
Manual Lever Benders: Best for thin-walled tubing.
Hydraulic Benders: Provide greater force for thicker pipes.
CNC Bending Machines: Deliver precision bends for aerospace and automotive industries.
Industrial Uses
Oil rigs and refineries
Shipbuilding and offshore platforms
Aerospace hydraulic systems
Automotive exhaust and fuel lines
The right bend can make or break a project. Even a few degrees of error can cause misalignment across an entire system.
Butt Welding Fusion Machines: Creating Seamless Plastic Pipelines
Plastic pipes dominate water supply, gas distribution, and industrial chemical transport. Butt welding fusion machines ensure these pipes are joined permanently.
Process Overview
Pipe ends are heated with a hot plate.
Once softened, they are pressed together.
The joint cools into a seamless bond.
Benefits
Leak-Proof: No couplings needed.
Durable: Fusion welds last as long as the pipe itself.
Efficient: Reduces material and labor costs.
With increasing adoption of HDPE and PP-R piping, butt welding fusion machines are now essential across industries.
Integration Across Industries: Case Studies
Oil & Gas: Offshore platforms combine threading machines for steel, fusion welders for plastics, and roll groovers for fire suppression systems.
Construction: High-rise buildings use bending machines for HVAC ducts, bevelers for weld prep, and hole cutters for sprinkler branches.
Municipal Infrastructure: Water treatment plants rely on cold cutting, threading, and fusion welding for massive distribution networks.
Each project is a puzzle, and these machines are the pieces that fit it together.
Choosing the Right Supplier: Why Leon Machinery Leads the Way
The difference between success and failure often lies in equipment quality and supplier reliability. Leon Machinery combines engineering expertise, robust manufacturing, and global logistics support to deliver dependable solutions.
📌 Leon Machinery
📞 WhatsApp: +8618136773114
📧 Email: leonxu0317@gmail.com
Conclusion: The Future of Pipe Fabrication
Pipe fabrication tools are evolving alongside industries. Automation, AI-driven monitoring, and smart diagnostics are being integrated into traditional machines. From threading to welding, from bending to grooving, the landscape is shifting toward smarter, faster, safer systems.
But no matter how advanced the technology becomes, the fundamentals remain. A stable vise, a sharp die, a clean bevel, and a precise bend will always be the cornerstones of successful fabrication.
Investing in the right tools today is not just about building pipelines—it’s about building the future.
