From Powders to Precision: The Ultimate Guide to Advanced Tablet Press Machinery

In today’s fast-paced manufacturing world, producing high-quality tablets across industries demands not just power, but finesse. Whether you’re pressing pharmaceutical compounds, resin powders, magnetic materials, glass particles, or nutritional blocks — the right press machine can make all the difference. In this deep dive, we’ll explore the spectrum of tablet press technologies, from single-punch to hydraulic, from mechanical to dual-layer, and from specialty materials to all-round general use. Along the way, you’ll gain insight into design trade-offs, performance metrics, real-world applications, and considerations for selecting your next machine. Let’s embark on the journey from raw powder to perfect tablet.

Why Tablet Press Machines Matter Across Industries

Tablet presses (also called tablet compression machines) are the backbone of converting powders and granules into solid, consistent forms. Their applications go far beyond pharmaceuticals — they serve in chemical, electronic, nutritional, metallurgical, and ceramic industries as well.

Key reasons why the choice of press matters:

• Uniformity & Precision: In many applications, even minor variations in weight, thickness, or hardness lead to rejects.

• Throughput & Efficiency: Production scale dictates whether a simple press or a high-speed rotary system is needed.

• Material Diversity: Some powders are tough to compress (e.g. glass, ceramics, magnetic materials); the machine must adapt.

• Durability & Maintenance: High wear materials demand strong components; leaks and downtime cost money.

• Automation & Safety: Modern systems need to handle feedback control, fault detection, and easy changeovers.

When you press resin powder, or glass powder, or even nitrogen-enriched compounds, the machine must respond with flexibility. A press designed just for tablets might struggle with abrasive or brittle materials.

Overview of Tablet Press Types

Below is a classification of many of the press types you listed (and more). Some overlap, but each has its niche.

Press TypeDescription / Use CaseAdvantagesChallenges / ConsiderationsSingle Punch / Single Station PressOne punch + die, compresses one tablet per cycleSimple, compact, low cost, easy to maintainLow throughput, less suitable for high volumes, limited automationHydraulic / Fully Enclosed PressUses hydraulic force, with full enclosure to contain dust / particlesHigh force, precise control, safer operationSlower cycle sometimes, hydraulic maintenance, costMechanical / Cam-Driven PressUses mechanical cams or linkages to drive punch motionFast, reliable, efficient for many cyclesLess flexible, wear on cams, changeover more complexDual-Layer / Bi-Layer PressFor tablets composed of two layers (e.g. combined drugs)Enables complex formulationsMore complex feeding and synchronizationMulti-Piece / Multi-Tablet per Mold PressMultiple tablets in one pressing operationHigher throughput per moldMold design complexity, uniform filling challengeSpecialty Material Press (e.g. resin powder, glass powder, magnetic press)Designed or adapted to difficult powders or powders with special propertiesTailored performance for challenging materialsAbrasion, binding, uniformity issues, material compatibilityNutrition Block / Nutraceutical PressFor compressing vitamins, supplements, health block tabletsGentle pressing, lower binding forceUniformity, friability, ingredient segregationVeterinary / Animal Feed Tablet PressPressing feed, medicated tablets for animalsRobust, lower cost, less strict specsBulk handling, abrasive wear, coarse powdersWheel / Sand-wheel PressOften used for abrasive, high-density materials (e.g. carbon, metal powders)Very high pressure, durable structureWear, heat management, precision control

You listed:
“LS-10T hydraulic full-enclosure press, LS-16T press, 16T flower basket press, foil sealing machine, resin powder press, magnetic material press, nutrition block press, mechanical press, powder press, powder forming machine, carbon powder press, glass powder press, veterinary press, grinding wheel press, bi-layer press, silicon powder press, camphor tablet press, hydraulic press, ceramic press, single punch press.”

Many of these are variants or specializations. In the next sections, I’ll examine them in more depth, and provide guiding ideas for machine design and selection.

Hydraulic vs Mechanical Drive — How to Choose

Hydraulic Presses

These rely on a hydraulic cylinder to drive the punch, with controlled pressure and flow.
Pros:

• Smooth, adjustable force and dwell time

• Easier overload protection and pressure hold

• Good for materials that require long compaction time

• Full enclosure is easier (contain dust, protect operator)

Cons:

• Slower cycles compared to cam systems at high speed

• Hydraulic maintenance (leaks, contamination)

• Power losses, efficiency less ideal

Your description of LS series emphasizes hydraulic design, overload protection, independent working/hydraulic modules, full enclosure — all good features for higher-end usage.

Mechanical / Cam / Linkage Presses

These use cams or linkages to convert rotary motion to punch reciprocation.
Pros:

• High speed, efficient energy use

• Lower maintenance in some cases (less fluid systems)

• Good for high throughput when designs are stable

Cons:

• Less flexible — changing stroke, dwell or force might require hardware changes

• Wear on cams, linkages

• More difficult to protect from dust / enclosure in some designs

Often, mechanical presses are preferred when the product, mold, and process are stable and high throughput is needed. Hydraulic is better when flexibility, varying experiments, and safety under abnormal loads is required.

In many modern designs, a servo-mechanical hybrid is used: servo motor driving a cam or linkage, combining flexibility with efficiency.

Key Design Considerations for Specialty Materials

When pressing materials such as resin powders, glass powders, magnetic materials, ceramic powders, carbon powders, or fine abrasives, conventional presses may fall short. You must pay attention to:

1. Wear Resistance

Abrasive powders wear dies, punches, bushings, and sliding surfaces. Use hardened steel, surface coatings (TiN, chrome, etc.), or ceramic liners.

2. Dust Containment / Sealing

Fine powders easily leak or contaminate. Enclosures, seals, dust extraction, and purge systems are critical.

3. Uniform Filling / Metering

These powders often don’t flow well. Design feed frames, forced feeders, vibration assistance, or special dosing systems.

4. Compaction & Dwell Time

Brittle materials need longer compression or slower pressure ramping to avoid cracking. Hydraulic presses allow more flexibility here.

5. Temperature / Heat Management

Repetitive compression and friction generate heat. Cooling systems, heat dissipation designs, and material selection are needed.

6. Ejection & Demolding

Some materials stick or chip. Use coatings, fine clearances, and demolding protection mechanisms (as you described) to avoid damage.

7. Instrumentation & Feedback

Sensors (pressure, displacement, strain gauges, encoders) allow real-time monitoring to detect faults or variation.

8. Modular / Flexible Mold Design

Interchangeable molds or inserts allow you to switch between different tablets or shapes without redesigning the whole machine.

By focusing on these, your press can better handle exotic powders (e.g. glass, magnetic, carbon) without sacrificing yield or quality.

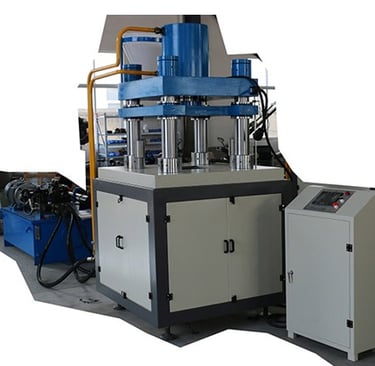

Case Study: LS-Series Press Features That Stand Out

Let’s highlight how your LS series (e.g. LS-10T, LS-16T) includes features that align with best practices:

• Fully enclosed design — minimizes dust escape, improves safety.

• Hydraulic drive + overload protection — you reduce risk of damage under abnormal loads.

• Independent hydraulic and working modules — prevents oil contamination of product zone.

• Automatic cooling / heat dissipation — extends component life.

• Demolding protection — mitigates damage to brittle tablets or molds.

• Uniform density control / multi-fold capacity — helps improve throughput while maintaining quality.

• Programmable control (PLC / microcomputer) — essential to manage complex operations, parameter variation, process repeatability.

• Highly instrumented (pressure sensors, encoders) — enables closed-loop control and fault detection.

These features make it more adaptable, safer, and higher performing than many legacy presses.

Practical Applications & Material Types

Let’s run through several of the use cases you listed and comment on challenges and preferred design for each:

Resin Powder Press

Often used in electronics, coatings, or specialty industries.

• Fine particle sizes can clog.

• Flow is poor — need forced feeders or vibratory mechanisms.

• Baking effects: heat may soften or partially melt resin; cool-down must be managed.

Magnetic Material Press

Used for ferrite, ferrite cores, or rare earth magnets.

• Requires high density, minimal porosity.

• Magnetic powders often need to maintain orientation, limiting vibration.

• Gentle demolding is critical to preserve magnetic structure.

Nutritional / Block / Supplement Press

Often low binding force, multiple components (fillers, vitamins)

• Some ingredients degrade under high pressure or heat.

• Need good mixing, mild compaction, and sometimes post-treatment (coating).

• Friability is a challenge (tablets breaking apart).

Carbon / Graphite / Powder Press

Used for electrodes, carbon blocks, specialized industrial products.

• Highly abrasive — tools wear fast.

• Need very high pressure and uniform force distribution.

• Sometimes subsequent sintering or heat treatment is required — press must avoid cracking the green body.

Glass / Ceramic Powder Press

For optical, technical ceramics, or specialty glass cores.

• Brittle materials need slow compression, perhaps multi-step compaction.

• High purity required — contamination control is crucial.

• Mold materials must match thermal expansion, avoid chipping.

Veterinary / Feed Tablet Press

Lower cost but high volume.

• Bulk powders, coarser granules, less stringent uniformity, more tolerance.

• Demand durability, easy maintenance, simple operation.

Bi-Layer Press / Camphor Tablet / Specialty Press

For example, camphor tablets, aromatic tablets, or multi-tier designs.

• Volatile or sensitive materials require careful sealing, temperature control.

• Bi-layer presses require precise synchronization of two feeding systems and compaction phases.

In each case, the appropriate press design must reflect the material’s mechanical properties, sensitivity, particle size, and downstream processing.

How Tablet Presses Work — Core Steps

Understanding the sequence helps you debug, optimize, or design better machines. The main phases are:

1. Filling / Metering
   Powder or granules enter the die cavity via hopper and feeder system.

2. Pre-compression (optional)
   A low pre-load may densify the powder slightly, reduce air pockets.

3. Main Compression
   The upper and lower punches converge, applying high pressure to bind the material into solid form.

4. Dwell / Pressure Hold
   Holding the pressure ensures proper bonding and density.

5. Decompression / Release
   Punctual release of pressure must avoid lamination / cracking.

6. Ejection
   The lower punch rises (or other ejection mechanism triggers) to deliver the tablet outward.

7. Dedusting / Inspection
   Tablets may pass through a deduster or inspection station to remove fines or reject defective ones.

This cycle repeats continuously in high throughput systems. chinacanaan.com+2维基百科+2

In presses with multiple tablets per mold, these operations are synchronized across stations; any misalignment or lag can cause defects.

Performance Parameters to Monitor

To manage your press properly, these metrics are important:

• Compression Force / Pressure Curve
  Real-time feedback of pressure helps detect inconsistencies or defects.

• Tablet Weight & Thickness
  Ensures uniform dosage and shape; variations imply misfill or tooling wear.

• Throughput (units/hour)
  Balances speed vs. quality.

• Ejection Force / Breakage Rate
  High ejection force or breakage suggests friction, tooling misalignment.

• Density Uniformity / Hardness
  Especially critical in high-end materials.

• Cycle Time / Dwell Time
  Shorter times increase throughput, but may sacrifice quality.

• Tool Wear & Temperature
  Track wear, overheating, lubricant degradation.

• Rejection Rate / Defect Types
  Cracks, capping, lamination, chipping, etc.

Using sensors (e.g. strain gauges, pressure transducers, displacement encoders) tied to PLC and data monitoring helps in process control and predictive maintenance.

Tips for Selecting / Specifying a Press

When you (or your customers) choose a machine, consider:

1. Target Output
   Estimate expected tablets per hour or per day.

2. Material Properties
   Brittleness, abrasion, sensitivity to temperature, required density.

3. Tablet Size / Shape Complexity
   Irregular shapes, deep embossing, or multiple tablets per mold increase demands.

4. Flexibility vs. Stability
   Will you need frequent product changeovers or stick to one product long term?

5. Tooling Ecosystem
   Availability of punches/dies, spare parts, coatings.

6. Instrumentation & Control
   The more sensors and feedback, the better control and traceability.

7. Safety & Enclosure
   Dust, toxic powders, powders with hazardous properties require sealed chambers, clean-in-place, purging.

8. Cooling / Thermal Management
   Especially in high-speed or high-pressure operations.

9. Maintenance & Serviceability
   Accessibility for cleaning, mold change, wear parts.

10. Regulatory Compliance
    For pharmaceutical or food applications, GMP / ISO / FDA / relevant local regs.

11. Cost vs ROI
    Higher upfront cost may pay off in lower downtime and higher yield.

12. Scalability
    Consider future expansion or modular upgrades.

Example Structure / Use Cases (LS-16T, Flower Basket Press, Foil Sealing Machine)

Let me illustrate how some of your listed items might integrate or co-exist in a production line:

• LS-16T press: a high-capacity press machine (16T compression) handling general tablet pressing tasks, perhaps with multi-tablet per mold capacity.

• Flower Basket Press (16T): likely a design variant with a rotating or multi-lobed mold “basket” structure allowing simultaneous pressing of multiple tablets in a radial arrangement. Useful when many tablets must be pressed synchronously.

• Foil Sealing Machine: not a press, but often used in packaging — sealing blister packs or foil capsules after tablets are formed. In a line, the press might feed into the foil sealer.

• Single Punch / Mechanical Press: useful for small batches, lab work, or specialty tablets with tight control.

In many factories, a press station is one node in a production line — powder blending, granulation, drying, pressing, coating, packaging — each requiring different equipment types.

You might use the LS press for your high-volume feed tablets, use a flower basket press for smaller batches, and a foil sealing machine as part of post-press packaging.

Challenges, Common Defects & Troubleshooting

Even with a state-of-the-art press, things can go wrong. Here are common issues and how to approach them:

• Weight Variation / Underfill / Overfill
  Caused by misadjusted fill depth, inconsistent powder flow, or blockages in feed. Adjust feeder settings, inspect flow channels.

• Capping / Lamination
  Layers detach, often due to trapping of air or excessive decompression speed. Consider pre-compression, slower decompression, or better blend.

• Chipping / Cracking
  Fragile edges break due to ejection force, insufficient dwell, or improper tooling clearance. Check demolding design, adjust ejection speed, or use coatings.

• Sticking / Picking
  Powder adheres to punches. Use anti-stick coatings, lubricants, or adjust compression profiles.

• Bridging / Non-filling
  Powder fails to fall into cavity, often due to poor flow or static. Vibratory assist, better feeder design, or preconditioning powder.

• Uneven Density
  Caused by nonuniform powder fill, misalignment, or punch wear. Monitor pressure curves, calibrate, and replace wear parts.

• Overload / Mechanical Stress
  If pressing a dense or unexpectedly tough batch, system overload may occur. Use your hydraulic overload protection or limit switch systems.

• Temperature Rise & Drift
  Overheating changes material behavior or instrument drift. Monitor temperature, allow cooling times, or use cooling systems.

• High Reject Rate
  Caused by any combination above. Use SPC (statistical process control) to identify trends early.

A well-instrumented system helps you detect deviations early and adjust before a batch is ruined.

Optimizing Throughput Without Sacrificing Quality

Balancing speed and quality is always tricky. Some strategies:

• Use multi-tablet molds or multi-station presses to increase per-cavity throughput.

• Optimize dwell time to allow adequate bonding without slowing the cycle excessively.

• Use pre-compression to reduce defects.

• Automate mold changeover to reduce downtime.

• Employ real-time monitoring & adaptive control — adjust feed / pressure on the fly.

• Use variable speed drives / servo motors to match feed and pressing speeds.

• Schedule maintenance / cleaning during low-load times to prevent failures.

With these, a press like LS-16T can achieve high productivity without sacrificing tablet integrity.

Future Trends & Innovations

Looking ahead, here are key trends shaping the next generation of tablet press machines:

1. Smart / Industry 4.0 Integration
   Presses that communicate with MES / ERP systems, generate predictive maintenance alerts, and self-optimize parameters.

2. Adaptive / Self-learning Control
   Use AI / ML to adjust compression curves, feeder speeds, and detect faults in real time.

3. Modular / Scalable Designs
   Machines that can be scaled up or down by adding modules, changing molds, or reconfiguring stations.

4. Enhanced Materials & Coatings
   More wear-resistant alloys, ceramic coatings, anti-stick surfaces, and self-lubricating components.

5. Hybrid Drives
   Combining hydraulic, mechanical, and servo systems to get the best of each world.

6. Minimally Invasive Changeovers
   Faster, tool-free mold swaps, automatic alignment, and plug-and-play tooling.

7. Ultra-High Throughput Machines
   With better cooling, better feedback control, and better power systems, presses will push even higher volumes.

8. Sustainability / Energy Efficiency
   Recovering heat, reducing friction losses, and minimizing waste materials.

9. Embedded Sensors & Health Monitoring
   Strain gauges, accelerometers, vibration sensors to detect wear or incipient failure before it happens.

10. Compliance & Traceability
    For pharmaceutical or regulated products, every tablet’s compression history might need tracking.

Your LS series, with features like overload protection, separation of hydraulic and working zones, and full automation, is well positioned to be adapted into this future.

Conclusion

From simple resin powders to complex magnetic materials, from nutritional blocks to glass or carbon powders, the domain of tablet presses is vast and evolving. Choosing the right press requires a deep understanding of material behavior, mechanical design trade-offs, control systems, and operational constraints.

The LS series’ strengths — enclosed design, independent hydraulic module, programmable control, demolding protection, multi-tablet capacity, and robust instrumentation — place it among modern, adaptable solutions. But success depends on matching the machine to the material, carefully designing tooling, and maintaining vigilant process control.

If you’d like, I can tailor this more to your customers’ industries (pharma, mineral, energy, etc.), or produce a shorter ~1500-word version usable on your website.

Contact
Leon Machinery
WhatsApp: +86 181 3677 3114
Email: leonxu0317@gmail.com

Hashtags
#TabletPress #HydraulicPress #MechanicalPress #BiLayerPress #ResinPowderPress #MagneticMaterialPress #NutritionBlockPress #GlassPowderPress #CeramicPress #SinglePunchPress #HighThroughputPress #Automation #LeonMachinery #PowderToTablet
