From Purification to Packaging: A Complete Industrial Production Line Guide for Modern Manufacturing

In today’s competitive manufacturing world, efficiency, precision, and hygiene standards are no longer optional — they are the baseline. Whether you are producing cosmetics, beverages, pharmaceuticals, soaps, or specialty chemicals, the journey from raw material preparation to final product packaging involves a series of interconnected systems and machines. In this comprehensive guide, we will walk through each critical piece of equipment in a modern production line, explaining not only its function but also its design principles, industrial applications, and operational best practices.

From RO Water Treatment Systems ensuring ultra-pure water quality to Vacuum Emulsifying Mixers blending delicate formulations, all the way to Packing Machines sealing your brand’s promise into every unit, this article will connect the dots for manufacturers seeking a streamlined, high-output operation.

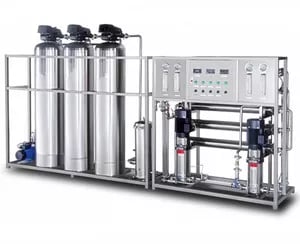

RO Water Treatment System: The Foundation of Product Quality

Water may seem simple, but in manufacturing, it’s a complex raw material that can make or break your product’s quality. An RO (Reverse Osmosis) Water Treatment System uses semi-permeable membranes to remove dissolved salts, heavy metals, microorganisms, and other impurities from water, producing a consistent supply of high-purity water.

Key Features:

• Multi-stage filtration, including sediment filters, activated carbon filters, and reverse osmosis membranes.

• Optional UV sterilization and ozone disinfection to eliminate microbial risks.

• Automatic flushing systems to maintain membrane performance.

Applications:

• Cosmetic creams, lotions, and serums where water purity is crucial for shelf life.

• Pharmaceutical-grade solutions that require compliance with GMP standards.

• Beverage production, ensuring consistent taste and microbiological safety.

Operational Insight:
Choosing the right RO system depends on feed water quality, required output volume, and the end product’s water specifications. LeonMachinery supplies modular systems that can be scaled as production grows, reducing downtime during expansions.

Vacuum Emulsifying Mixer: Precision Blending at a Microscopic Level

A Vacuum Emulsifying Mixer is the workhorse of the cosmetics, pharmaceutical, and food industries. By combining high-shear mixing under a vacuum, it produces stable emulsions, creams, and gels with uniform texture and long shelf life.

How It Works:

• The main mixing tank is equipped with a high-speed homogenizer at the bottom and a slow-speed scraper agitator on the side.

• The vacuum environment eliminates air bubbles, enhancing product density and preventing oxidation.

• Heating and cooling jackets allow precise temperature control for sensitive formulations.

Advantages:

• Superior emulsification — droplet sizes reduced to 2–5 microns.

• Elimination of aeration defects.

• Shorter processing times compared to conventional mixers.

Industries Benefiting Most:

• High-end skincare production.

• Pharmaceutical ointments.

• Food emulsions like mayonnaise and sauces.

Liquid Homogenizer Mixer: Uniformity Without Compromise

While emulsifying mixers excel in cream-based products, the Liquid Homogenizer Mixer is ideal for low to medium-viscosity liquids requiring fine dispersion.

Design Overview:

• Rotor-stator systems create intense shear forces, breaking down particles and dispersing them evenly.

• Variable speed control for adapting to different viscosities.

• Inline or batch configurations to suit production layouts.

Applications:

• Beverage flavor mixing.

• Liquid detergents and cleaning solutions.

• Nutritional and herbal liquid products.

Filling Machine: Accuracy Meets Speed

The Filling Machine is the bridge between production and packaging. Modern filling systems are engineered to handle different viscosities, container types, and output speeds without compromising accuracy.

Filling Technologies:

• Piston fillers for high-viscosity creams and pastes.

• Gravity fillers for thin liquids.

• Peristaltic pumps for sterile, small-batch operations.

Key Factors to Consider:

• Nozzle design for drip-free filling.

• CIP (Clean-In-Place) systems for hygiene.

• Multi-head configurations to boost throughput.

LeonMachinery’s Approach:
We customize filling machines for cosmetics, pharmaceuticals, and food industries, integrating them seamlessly with upstream and downstream equipment for maximum productivity.

Packing Machine: Protecting and Presenting the Product

A great product deserves professional packaging. Packing Machines handle tasks from sealing to labeling, ensuring your products arrive at market intact and visually appealing.

Common Types:

• Flow wrappers for solid goods like bars of soap.

• Vertical form-fill-seal machines for powders and granules.

• Shrink wrapping for grouped items.

Why It Matters:
Efficient packaging reduces waste, enhances shelf life, and strengthens brand perception. In industries like cosmetics and food, the packaging is often the first customer touchpoint — making precision and consistency essential.

Perfume Making Machine: Capturing Fragrance with Precision

Perfume manufacturing is both an art and a science. The Perfume Making Machine is designed for gentle mixing of aromatic compounds with solvents, ensuring fragrance stability and clarity.

Highlights:

• Explosion-proof motors for handling alcohol-based solutions.

• Cooling systems to prevent volatile loss.

• Fine filtration units to ensure crystal-clear output.

Market Application:
High-end perfume brands, personal care products, and even specialty home fragrances rely on precision mixing and filtration to deliver consistent sensory experiences.

Bar Soap Machine Line: From Raw Oils to Finished Bars

The Bar Soap Machine Line integrates saponification, refining, extrusion, cutting, and stamping processes into a continuous operation.

Core Components:

• Sigma mixers for initial blending.

• Refiners/plodders for texture improvement.

• Stamping presses for branding.

Efficiency Factor:
Automated soap lines significantly reduce labor costs and maintain consistent product size, weight, and fragrance.

Storage Tank: Safe Holding Between Processes

Storage tanks act as the buffers between processing stages, holding raw materials or semi-finished products until the next step.

Engineering Details:

• Constructed from stainless steel (SUS 304 or 316L) for hygiene.

• Insulated for temperature-sensitive materials.

• Equipped with level sensors and agitation systems if required.

Conveyor System: The Silent Workhorse of Production Lines

Conveyors move products efficiently between machines, reducing manual handling and increasing throughput.

Types:

• Belt conveyors for packaged goods.

• Roller conveyors for heavy loads.

• Sanitary conveyors for food and pharma applications.

Auxiliary Equipments: The Supporting Cast

Auxiliary equipment includes vacuum pumps, compressors, labeling machines, and inspection systems. While they might seem secondary, their role is critical for smooth operations.

Examples:

• Labeling units for brand consistency.

• Metal detectors for safety compliance.

• Air compressors for pneumatic controls.

Why Integration Matters

While each machine has a standalone function, the real efficiency comes when all units are integrated into a smart manufacturing line. LeonMachinery specializes in designing turnkey systems where every machine communicates, ensuring synchronized speeds, automated quality checks, and minimal downtime.

Deep Dive into RO Water Treatment System Design

Purity starts at the molecular level. The Reverse Osmosis (RO) Water Treatment System isn’t just a filter — it’s a precision-engineered gatekeeper.

Core Process Stages:

1. Pre-filtration: Sediment filters remove suspended solids down to 5 microns, preventing damage to downstream membranes.

2. Activated Carbon Adsorption: Eliminates chlorine and organic compounds that degrade membrane lifespan.

3. High-Pressure Pump: Pressurizes water against the RO membrane, enabling selective permeability.

4. RO Membrane Separation: Rejects 99%+ of dissolved salts, heavy metals, and microbes.

5. Post-treatment: UV or ozone systems ensure zero microbial regrowth.

Technical Considerations:

• Membrane Material: Polyamide thin-film composite (TFC) for high salt rejection.

• Recovery Rate: Typically 40–60% for brackish water, 20–40% for seawater applications.

• Maintenance Cycle: Membrane cleaning every 6–12 months depending on feed water quality.

LeonMachinery Recommendation: Pairing RO with an EDI (Electrodeionization) unit for ultra-pure water applications like pharmaceuticals, ensuring conductivity <0.1 μS/cm.

Vacuum Emulsifying Mixer: Anatomy and Optimization

Structural Components:

• Main Mixing Tank: Double or triple-layer stainless steel with thermal oil or steam jacket.

• High-Shear Homogenizer: Positioned bottom-center for maximum turbulence and emulsification.

• Scraper Agitator: Teflon scrapers continuously clean the tank wall for uniform heat transfer.

• Vacuum Pump: Removes entrapped air, enabling denser final product with improved stability.

Performance Parameters:

• Shear rate: 10–25 m/s at rotor tip.

• Homogenizing speed: 0–3600 rpm (variable).

• Vacuum level: -0.08 to -0.095 MPa.

Common Issues & Solutions:

• Problem: Overheating sensitive ingredients.
  Solution: Use a segmented heating curve with PID temperature control.

• Problem: Residual air pockets in viscous creams.
  Solution: Increase vacuum dwell time before discharge.

Liquid Homogenizer Mixer: Inline vs Batch Systems

Inline Homogenizers draw product continuously through the rotor-stator assembly, ideal for high-volume production with uniform consistency.
Batch Homogenizers operate inside a fixed tank, suitable for flexible or small-batch production.

Performance Benchmarks:

• Particle size distribution: <10 microns achievable with single pass.

• CIP integration: Automated cleaning reduces downtime by 60%.

• Energy consumption: Optimized impeller geometry can cut energy use by 15%.

Filling Machine Selection by Product Type

High-Viscosity Products:

• Piston Fillers with heated jacket to maintain flow.

• Suitable for creams, honey, ointments.

Medium-Viscosity Products:

• Gravity or Pressure Overflow Fillers for juices, oils, detergents.

Low-Viscosity & Sterile Products:

• Peristaltic Fillers for pharmaceutical syrups or eye drops — tubing can be sterilized and replaced easily.

Precision & Accuracy:
Modern servo-driven fillers achieve ±0.5% filling accuracy, translating to significant savings over large production runs.

Packing Machine: Automated Versatility

Integration Possibilities:

• Pairing with labeling machines for synchronized product handling.

• Connecting with weighing scales for accurate pouch packaging.

• Incorporating vision inspection to reject defective packages automatically.

Sustainability Trends:

• Use of recyclable films and biodegradable shrink wrap.

• Servo-controlled sealing jaws for energy efficiency.

Perfume Making Machine: Process Engineering

Process Steps:

1. Base Oil & Alcohol Mixing: Controlled agitation to prevent premature volatilization.

2. Fragrance Addition: Timed dosing to preserve aromatic top notes.

3. Cooling Phase: Reduces volatility loss before filtration.

4. Filtration: Depth filters (5–10 microns) to remove particulates, polishing filters for clarity.

Explosion-Proof Design:
Every motor, switch, and sensor is rated for hazardous environments (Ex-proof certification), preventing ignition in volatile vapor zones.

Bar Soap Machine Line: High-Efficiency Workflow

Workflow Sequence:

• Saponification Reactor: Converts oils/fats into soap via alkaline reaction.

• Vacuum Spray Drying: Reduces moisture for harder bars.

• Refining & Plodding: Triple refining ensures smooth texture.

• Cutting & Stamping: Precision molds add logos and weight consistency.

• Packing: Automatic wrapping and carton packing.

Cycle Time:
Full automation can produce 300–600 bars/min depending on machine size.

Storage Tank Innovations

Special Designs:

• Cone-Bottom Tanks: For complete drainage of viscous liquids.

• Agitated Tanks: For products prone to sedimentation.

• Insulated Tanks: For maintaining product temperature over long storage.

Hygiene Compliance:
Tanks are polished to Ra<0.4 μm to prevent bacterial growth — a GMP and FDA requirement.

Conveyor System: Intelligent Material Handling

Automation Features:

• Variable speed drives to synchronize with upstream/downstream processes.

• Sensors for accumulation control to prevent bottlenecks.

• Modular belts for easy cleaning in hygienic environments.

Customization:
LeonMachinery designs conveyors for wet, dry, hot, and cold environments — including incline and spiral conveyors for space-saving layouts.

Auxiliary Equipments That Maximize Uptime

Examples & Functions:

• Vacuum Pumps: Critical for vacuum emulsifying mixers.

• Air Compressors: Powering pneumatic actuators in filling and packing machines.

• Chillers: Controlling temperature in mixing or perfume processes.

• Labeling Machines: Branding consistency for market recognition.

• Inspection Systems: Ensuring zero defects leave the facility.

Case Study: Integrated Cosmetic Cream Production Line

A mid-sized cosmetics manufacturer approached LeonMachinery seeking a fully automated line for premium facial creams.

Solution Provided:

• RO Water Treatment (2T/hr capacity)

• 500L Vacuum Emulsifying Mixer

• Inline Homogenizer for liquid phases

• Servo-driven piston filling machine (8 nozzles)

• Automatic labeling and shrink-wrapping units

• PLC-based central control with recipe management

Outcome:

• Production time per batch reduced by 40%.

• Consistency improved — rejection rate dropped from 4% to 0.5%.

• Operator headcount reduced from 10 to 6, saving $48,000 annually.

Maintenance & Troubleshooting Guidelines

RO System:

• Flush membranes weekly to prevent fouling.

• Replace pre-filters every 1–3 months.

Mixers & Homogenizers:

• Inspect seals quarterly.

• Lubricate bearings according to manufacturer’s intervals.

Filling & Packing Machines:

• Calibrate dosing nozzles monthly.

• Check sealing jaws for wear to avoid package leaks.

Why Choose LeonMachinery for Turnkey Solutions

LeonMachinery doesn’t just sell machines — we deliver integrated, scalable production ecosystems.
From feasibility studies to after-sales support, our engineers ensure every unit you receive is optimized for your production goals.
