Igniting Efficiency: The Modern Evolution of Clinical Waste Incinerators
LEON MACHINERY
2/1/20253 min read
Introduction: Redefining Waste Management in the Biomedical Sector
In a world where medical innovation is moving at lightning speed, the systems that manage biomedical waste must evolve just as rapidly. Incineration has long been a staple in clinical waste disposal, but not all incinerators are created equal. Enter the modern, top-loading clinical waste incinerator—a machine engineered not only to incinerate but to do so with a level of precision, efficiency, and safety that redefines industry standards.
This isn’t your typical waste-burning box. This is a high-performance, AI-driven, fuel-efficient marvel.
The Purpose-Built Solution for Medical Waste
Biomedical waste is not like ordinary garbage. It's infectious, hazardous, and poses serious risks to human health and the environment if not treated correctly. This clinical waste incinerator is purpose-built to handle such loads with a high-capacity burn chamber and advanced controls.
Why Specialized Incineration Matters:
Ensures full neutralization of pathogens
Reduces volume and mass of waste
Prevents illegal dumping and contamination
Supports compliance with strict regulatory frameworks
Design That Speaks Volumes: Built for Performance
With its top-loading design and robust steel construction, this machine offers industrial durability fused with technological elegance. Constructed with up to 10mm thick steel and a reliable brick-lined refractory, it ensures structural integrity even in extreme thermal conditions.
Key Structural Features:
External Dimensions: 4245 x 3530 x 2145/4030 mm
Internal Chamber Volume: 4.18 m³
Max Load Capacity: 2000 kg
Refractory lining with 3-layer insulation for minimal heat loss
Three-phase 220–250V power supply with single-phase option
Touchscreen Automation: The Digital Leap
Controlling an incinerator used to be an art in itself. Not anymore. With a user-friendly touchscreen PLC controller, all operations—from ignition to cool-down—are digitally governed. You can manually intervene or simply hit ‘Start’ and let the machine run its fully automated cycle, requiring little to no human interaction afterward.
Touchscreen Capabilities:
Easy setup of operational cycles
Real-time data logging
Burn rate control and diagnostics
Auto shutdown after completion
Dual Systems: Combustion and Cooling Mastery
This machine isn't just about heat—it's about control. Two integral systems work together for optimal efficiency:
Combustion Booster – Injects excess air to enhance flame quality, lower fuel use, and accelerate burn times.
Rapid Cool-Down – Post-cycle cooling helps speed up turnaround, enabling faster prep for the next load.
Fuel-Efficient Powerhouse
Compared to traditional incinerators, this machine is independently proven to consume 40% less fuel. That translates to significant long-term savings, better profit margins, and reduced environmental impact.
Thermal Capacity: 288 kW
Nominal Burn Rate: <45 kg/hr (UK) / 50–75 kg/hr (Export)
Versatile Fuel Compatibility
This incinerator gives you options. Whether you're in a diesel-rich region or have access to LPG or natural gas, the system is adaptable to your energy source.
Compatible Fuels:
Diesel
LPG (Liquefied Petroleum Gas)
N-Gas (Natural Gas)
Safety Features: Because There’s No Margin for Error

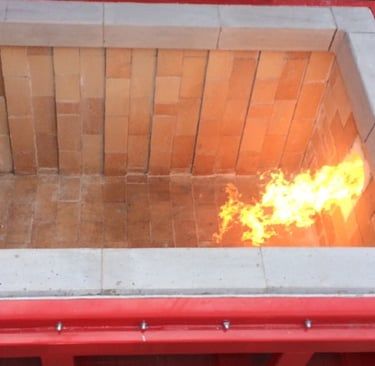

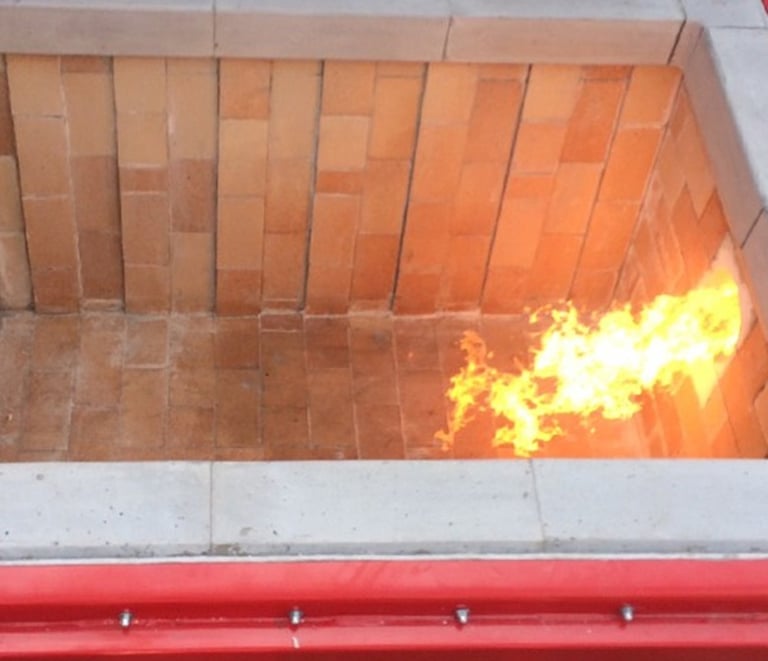

With hazardous materials, safety isn’t negotiable. The outer ram bar protects the unit’s core during loading, while the firebrick lining made with 42.5% alumina ensures exceptional heat resistance. Insulation layers—including a 25mm Super-wool board—prevent surface overheating and boost containment.
Clinical and Industrial Use Cases
This machine isn’t just built for hospitals. It’s versatile enough for use in:
Veterinary Clinics (e.g., equine cremation)
Pharmaceutical Manufacturers
Research Labs
Infectious Disease Facilities
Government Health Agencies
User Testimonials
Dr. Amy Schultz, Infection Control Officer, Berlin: "The PLC touchscreen system has completely changed our daily operations. It’s clean, quick, and above all, reliable."
Dr. Ramesh Kulkarni, Director of Waste Compliance, Mumbai: "We run multiple burn cycles a day, and the fuel savings are beyond our expectations. This machine paid for itself in under six months."
Compliance and Environmental Responsibility
EU compliant and built with sustainability in mind, this incinerator is a solution aligned with modern ecological principles. Its clean combustion reduces particulate emissions, and smart air-control ensures complete oxidation.

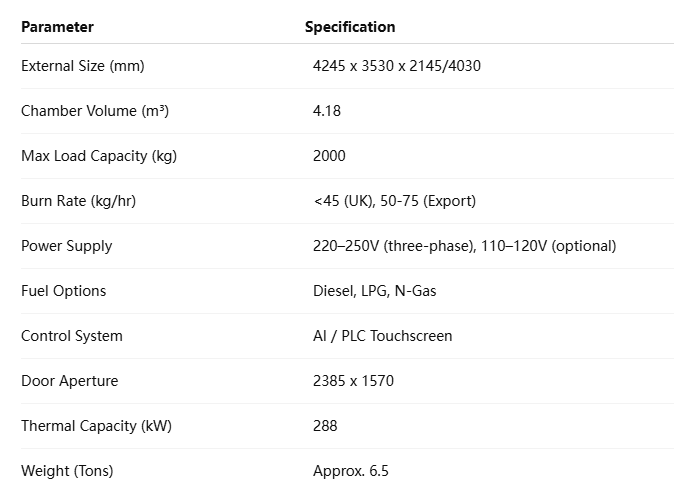

Technical Specifications at a Glance
The Future of Incineration: What’s Next?
Looking ahead, AI-integrated diagnostics, cloud-based performance monitoring, and waste categorization sensors could become industry standards. Imagine a machine that not only burns but thinks—classifying waste automatically and adjusting burn cycles accordingly.
Conclusion: Beyond Burn – A New Standard in Waste Processing
This clinical waste incinerator isn’t just a disposal unit—it’s an intelligent, fuel-efficient, environmentally sound investment in medical safety and profitability. Designed for the demands of modern medicine, it offers a fusion of automation, precision, and eco-consciousness.
