Mastering Precision: A Comprehensive Guide to Slitter Rewinders and Converting Equipment

In the dynamic world of material processing and converting, precision and efficiency are paramount. Slitter rewinders and associated machinery play a crucial role in transforming large rolls of material into usable formats across various industries. This comprehensive guide delves into the intricacies of slitter rewinders, exploring their types, applications, and the latest advancements in the field.​

Understanding Slitter Rewinders

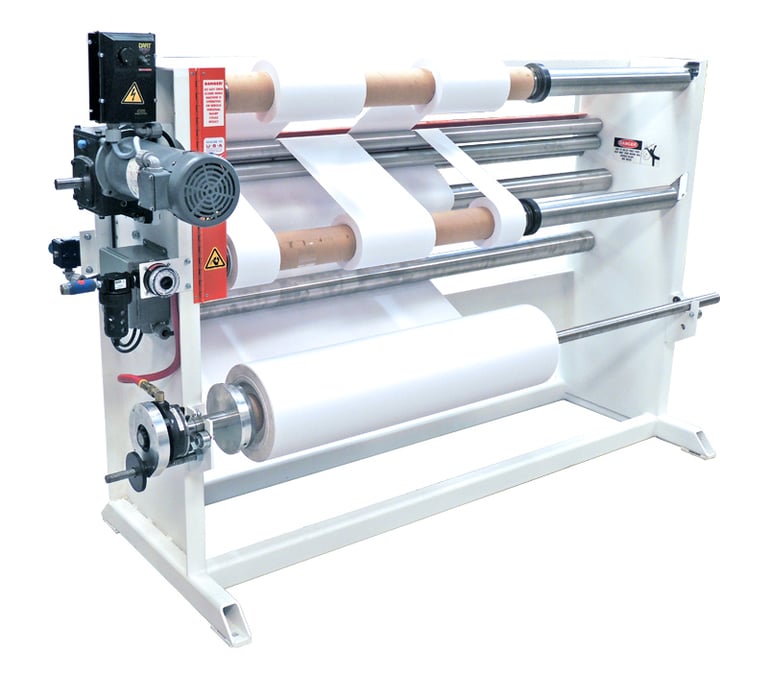

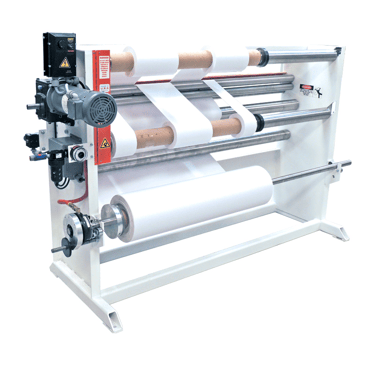

A slitter rewinder is a machine designed to slit large rolls of material into narrower rolls and rewind them for further processing or distribution. These machines are essential in industries dealing with paper, film, foil, and other flexible materials. The process involves unwinding the master roll, slitting the material using various cutting methods, and rewinding the slit material onto cores.​

Types of Slitter Rewinders

1. Center Winding Slitter Rewinders

Center winding machines wind the material directly onto the core, with tension controlled by the winding shaft. They are ideal for materials that require precise tension control.​HC Machinery

2. Surface Winding Slitter Rewinders

Surface winding machines use drums to drive the winding process, suitable for materials sensitive to tension variations.​

3. Duplex Slitter Rewinders

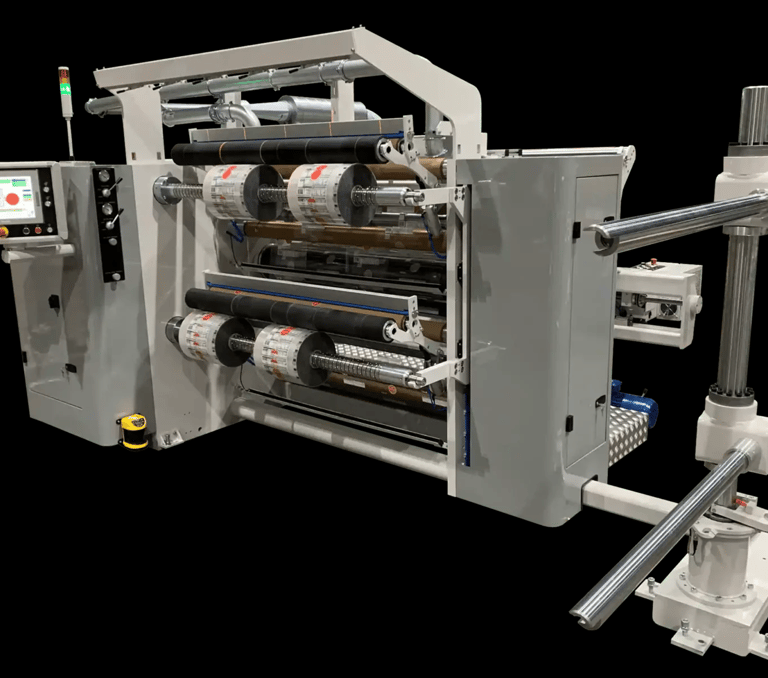

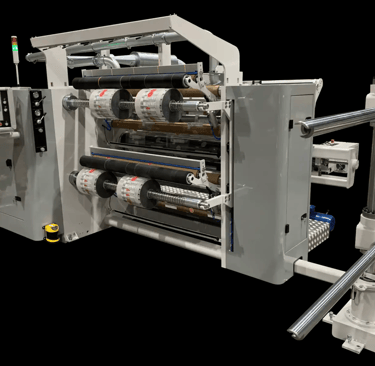

Duplex machines feature two rewind shafts, allowing simultaneous winding of two rolls, enhancing productivity.​

4. Cantilevered Slitter Rewinders

These machines offer easy access for loading and unloading, ideal for short runs and frequent roll changes.​

Key Components and Features

Unwind Unit

The unwind unit holds the master roll and feeds it into the slitting section. Advanced machines feature shaftless and pneumatic-chuck unwind stands for easy loading and precise control. ​

Slitting Section

The slitting section employs various cutting methods:​

• Razor Blade Slitting: Ideal for thin films.​

• Shear Slitting: Uses rotary knives for clean cuts on thicker materials.​

• Crush Cutting: Suitable for non-woven and laminated materials.​

Rewind Unit

The rewind unit collects the slit material onto cores. Features like differential shafts and tension control systems ensure uniform roll quality.​

Applications Across Industries

Paper Industry

Slitter rewinders are vital in converting jumbo paper rolls into sizes suitable for printing, packaging, and other applications.​

Plastic Film Industry

In film processing, these machines handle materials like BOPP, PET, and PVC, ensuring precise slitting for packaging and labeling.

Aluminum Foil Processing

Specialized slitter rewinders manage the delicate nature of aluminum foil, maintaining tension and preventing wrinkles. ​

Textile and Non-Woven Fabrics

In textile manufacturing, slitter rewinders process fabrics into desired widths for garments, medical supplies, and more.​

Advanced Technologies in Slitter Rewinders

Automation and Control Systems

Modern machines incorporate PLCs and touch-screen interfaces for precise control over slitting parameters, enhancing efficiency and reducing manual intervention.​

Web Guiding Systems

These systems ensure accurate alignment of the material, crucial for maintaining slitting precision, especially in printed materials.​

Tension Control Mechanisms

Advanced tension control maintains consistent tension throughout the process, vital for materials sensitive to stretching or deformation.​

Selecting the Right Slitter Rewinder

When choosing a slitter rewinder, consider the following factors:

• Material Type: Different materials require specific slitting methods and tension controls.​

• Roll Dimensions: Ensure the machine can handle the width and diameter of your master and finished rolls.​

• Production Volume: High-speed machines are suitable for large-scale operations, while simpler models suffice for smaller runs.​

• Automation Needs: Evaluate the level of automation required based on your production processes.​

Maintenance and Safety Considerations

Regular maintenance ensures longevity and optimal performance:

• Blade Maintenance: Keep slitting blades sharp and replace them as needed.​

• Roller Inspection: Check for wear and alignment issues.​

• Safety Protocols: Implement safety guards and emergency stop mechanisms to protect operators.​

Conclusion

Slitter rewinders are indispensable in the material converting industry, offering precision, efficiency, and versatility. Understanding their types, components, and applications enables businesses to select the right equipment, optimizing their production processes and ensuring high-quality output.​

Note: For specific product recommendations and detailed specifications, consulting with manufacturers or industry experts is advisable to ensure the selected equipment meets your operational requirements.

Slitter rewinders are indispensable in the converting industry, offering precision and efficiency in processing various materials. Regular maintenance is crucial to ensure optimal performance and longevity of these machines. Below are key maintenance practices:​

1. Lubrication of Moving Parts

Regularly lubricate gears, rollers, and bearings to minimize friction and wear. Use manufacturer-recommended lubricants and adhere to specified intervals. Signs of inadequate lubrication include unusual noises or increased friction.

2. Blade Inspection and Replacement

Sharp blades are essential for clean cuts. Inspect blades periodically for wear, nicks, or chips, and replace or sharpen as necessary. Ensure proper alignment of blade holders to maintain cutting accuracy. ​

3. Roller Alignment and Tension Adjustment

Proper tension and alignment are vital for even cuts and rewinding without distortion. Regularly inspect and adjust roller tension based on the materials being processed. Monitor tension settings and adjust according to material thickness and type. ​

4. Cleaning of Machine Components

Dust, debris, and adhesive buildup can interfere with machine performance. Clean all parts, especially the cutting and rewinding areas, with non-abrasive cleaning solutions. Conduct thorough cleaning weekly, especially when processing adhesive-backed materials. ​

5. Electrical System Check

An intact electrical system is crucial for safe and efficient operation. Inspect wiring and connections for wear or damage every three months to ensure all connections are secure and functioning properly. ​

6. Bearing and Belt Inspections

Bearings and belts are essential for smooth operation. Regularly check for wear or improper tensioning. Monthly inspections can help catch issues before they lead to significant downtime. ​

7. Rewind & Knife Shaft Maintenance

Monthly, check the airtightness of the rewind shaft to prevent air leaks that could affect performance. Semi-annually, inspect the precision and airtightness of the rewind shaft and the parallelism of the top and bottom knife shafts to guarantee accurate cutting.

8. Gearbox Maintenance

Monthly, check the oil level, inspect for leaks or unusual noises, and ensure the ventilation system functions properly. Change gearbox oil after 300 hours of operation, then every 2000 hours thereafter.

9. Conducting Full System Inspections

While regular maintenance focuses on specific components, periodic full-system inspections are necessary to ensure overall machine health. Monthly, inspect all belts, gears, and motors for wear and tear. Quarterly, test the machine’s electronic components, such as sensors and controls. Annually, conduct a professional audit to identify potential upgrades or needed part replacements. ​

Implementing these maintenance practices will enhance the performance and longevity of your slitter rewinder, ensuring consistent, high-quality output and reducing downtime.​
