Precision Meets Power: The Ultimate Guide to Modern Sheet Metal Cut-to-Length and Slitting Solutions

Introduction: A New Era of Sheet Metal Processing

Sheet metal processing has evolved far beyond simple cutting and stacking. Modern industries—from automotive and aerospace to construction and electronics—demand unparalleled precision, speed, and versatility. Gone are the days when a single line could handle one type of material at one speed. Today, manufacturers need systems that can seamlessly switch from ultra-thin foils to heavy hot-rolled plates, all while maintaining edge quality, flatness, and repeatable accuracy.

The challenge is not merely in cutting metal; it is in integrating a complex set of subsystems—coilers, straighteners, shears, slitting heads, measuring systems, and stackers—into a synchronized production flow. Each component must communicate with the others via sophisticated PLC controls, sensors, and feedback loops to ensure that material handling is flawless, and downtime is minimized. High throughput, precise tolerances, and reliable automation are no longer optional—they are expected.

This article explores the key technologies in modern sheet metal processing, focusing on Rotary Shear Cut-to-Length Lines, Hot-Rolled Steel Cut-to-Length Lines, Heavy Gauge CTL, Stopped Cutting Systems, Double Slitter Lines, Narrow Width Slitting Lines, and Aluminum/Copper Foil Slitting Lines. By understanding the strengths and applications of each, manufacturers can make informed investment decisions, reduce waste, and maximize productivity.

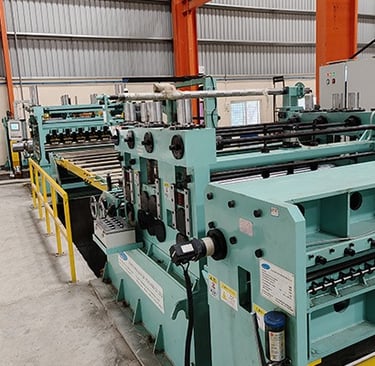

Rotary Shear Cut-to-Length Line: Speed and Smoothness Combined

The Rotary Shear Cut-to-Length Line represents the pinnacle of high-speed, continuous metal processing. Unlike conventional stop-cut systems, rotary shear lines employ a pair of rotating blades that cut the strip while it moves at full production speed. This allows the line to achieve significantly higher throughput without sacrificing edge quality or flatness.

• Coil Thickness Range: 0.2–3 mm

• Line Speed: up to 90 m/min

The advantages of rotary shears are numerous. First, the continuous cutting motion reduces start-stop inertia, which is critical when handling delicate materials such as galvanized steel or thin cold-rolled strips. Second, synchronized leveling ensures that the metal maintains uniform flatness, even at high speeds. Finally, precision measuring systems feed exact length data to the shear, ensuring that each sheet is cut within strict tolerances.

For service centers handling high volumes of light gauge material, a rotary shear line is a game-changer. It eliminates bottlenecks associated with manual changeovers, minimizes material stress, and reduces the risk of surface scratches. Operators can switch between different coil widths and thicknesses without halting the production line, significantly improving overall efficiency.

In practice, a rotary shear line integrates several key subsystems: an entry decoiler to manage coil tension, a straightening section to remove curvature, measuring rollers to determine cut length, and a high-speed rotary shear unit. Downstream, an automated stacking system ensures sheets are piled accurately, ready for transport or further processing. The combination of speed, precision, and automation makes rotary shear CTL lines indispensable for modern metal processing facilities.

Hot-Rolled Steel Cut-to-Length Line: Taming the Heat

Processing hot-rolled (HR) steel coils introduces a different set of challenges. These coils are thicker, heavier, and often coated with scale, which can affect cut quality and surface integrity. The Hot-Rolled Steel Cut-to-Length Line is engineered to handle these demanding conditions with robust construction and powerful leveling capabilities.

• Coil Thickness Range: 1–12 mm

• Line Speed: up to 30 m/min

Unlike high-speed rotary shear systems, hot-rolled CTL lines prioritize reliability and flatness over extreme speed. Heavy-duty decoilers manage coil weights safely, while robust straightening rolls correct deviations caused by internal stresses in the metal. The shear, often a hydraulic guillotine type, provides precise cuts even on thick, heavy plates.

These lines are commonly found in shipyards, structural steel fabrication shops, and industrial plate processing plants. The combination of high-torque motors, strong structural frames, and precision shears ensures that even large, heavy coils are processed with consistent length and minimal edge distortion.

Hot-rolled CTL systems typically incorporate automated measurement devices, which monitor length and diagonal squareness to guarantee adherence to tight tolerances. Coupled with integrated stackers and downstream handling systems, these lines deliver efficiency, safety, and repeatable quality, making them essential for industries that cannot compromise on precision.

Why Choose Rotary vs. Stop-Cut for HR Steel?

Choosing between rotary shear and stop-cut systems depends on material characteristics, production volume, and desired accuracy. Rotary shear excels with thin, lightweight materials where speed is critical. Stop-cut, or start-stop shears, offer greater flexibility for thicker or uneven materials, as the strip is momentarily halted for each cut. This ensures precise length control and minimal deformation.

In hot-rolled steel operations, especially with heavy-gauge material, stop-cut lines are often preferred because they handle scale, high thickness, and coil weight more reliably. While rotary shear lines can process HR steel, their high-speed mechanism is better suited for thinner strips where inertia and edge quality are primary concerns.

Heavy Gauge Hot-Rolled Cut-to-Length Line: Strength Meets Precision

When coil thickness moves into double digits—think 8–28 mm—you enter the realm of heavy gauge hot-rolled steel processing. These lines are built not just for cutting, but for dominating the physical challenges posed by thick, heavy, and sometimes uneven coils.

• Coil Thickness Range: 8–28 mm

• Line Speed: up to 30 m/min

Heavy-gauge CTL lines prioritize structural rigidity. Massive shear units, often hydraulic guillotines, ensure clean cuts, while reinforced entry guides and precision levelers flatten the metal to exact specifications. Because of the weight of the material, automated coil handling systems, including decoilers and stackers, are engineered to manage large coils safely without compromising edge quality.

Industries such as construction, shipbuilding, wind power, and infrastructure rely heavily on these lines. A single miscut in a 20 mm thick plate can result in significant waste and financial loss. Thus, reliability, safety, and precision are the watchwords for heavy-gauge CTL systems.

Moreover, advanced control systems allow operators to program multiple coil specifications, dynamically adjusting feed speed, shear force, and leveling pressure. This flexibility ensures that even with varying coil characteristics, each cut maintains consistent length, flatness, and edge integrity.

Stopped Cutting Systems: Accuracy Over Speed

While rotary shear systems excel in high-speed production of thin materials, the stopped cutting (start–stop) system shines where accuracy and repeatability are paramount. In this configuration, the strip momentarily halts for the shear to execute a precise cut.

• Advantages:

  • Superior length accuracy across thick and uneven materials

  • Minimal edge distortion on hard or coated steel

  • Flexibility to handle a wider range of thicknesses and coil types

Stopped cutting systems are particularly useful in mixed-product lines, where one day you process thin galvanize steel and the next day 12 mm hot-rolled plates. Despite a slower nominal line speed compared to rotary shear lines, the system reduces scrap and improves customer satisfaction by delivering consistently accurate sheets.

Modern stopped cutting CTL lines also integrate fully automated measurement and feedback controls. Sensors detect coil tension, strip alignment, and diagonal squareness. The PLC adjusts feed speed and shear timing in real-time, ensuring each sheet conforms to precise dimensional requirements.

Double Slitter Slitting Line: Maximizing Efficiency

For service centers that need multiple narrow strips from a single master coil, Double Slitter Slitting Lines multiply efficiency without requiring additional floor space.

• Coil Thickness Range: 0.2–6 mm

• Line Speed: up to 220 m/min

The “double slitter” concept involves mounting two sets of slitting heads on the line, allowing one to prepare for the next job while the current job is still running. This dual setup drastically reduces downtime, a critical factor in high-volume operations.

Double slitter lines are also equipped with precise tension control systems. Maintaining constant tension prevents edge deformation, wrinkling, and surface scratches. Automated recoilers wind the finished strips neatly, ready for shipment or further processing. The combination of speed, automation, and minimal changeover time makes these lines ideal for manufacturers handling diverse customer orders and high-mix production schedules.

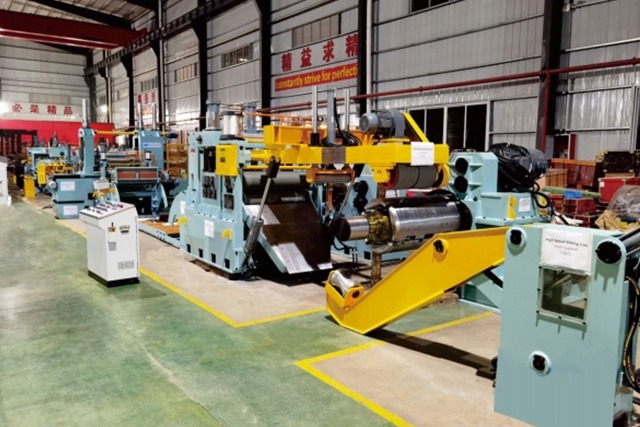

Narrow Width Slitting Line: Precision for Thin Strips

When customers demand extremely narrow coils, Narrow Width Slitting Lines step in. These systems are designed for applications such as transformer laminations, appliance panels, and precision stamping operations.

• Coil Thickness Range: 0.2–3 mm

• Line Speed: up to 220 m/min

Key features include highly precise arbors, automated knife alignment, and feedback-controlled tension systems. Even ultra-thin strips can be slit with razor-sharp edges and consistent width. High-speed recoiling ensures that the production line maintains throughput without sacrificing quality.

Narrow width lines often complement double slitter setups, giving manufacturers flexibility to create multiple narrow strips while simultaneously handling different coil types and thicknesses. The result is a combination of precision, speed, and operational flexibility, enabling service centers to meet varied customer demands efficiently.

Applications Across Industries

These systems—whether rotary shear, heavy-gauge CTL, or advanced slitting lines—are not just technical marvels; they are industry enablers. Automotive manufacturers benefit from accurate, burr-free sheets that reduce downstream assembly errors. Construction firms receive thick steel plates with uniform flatness, improving structural reliability. Electronics and appliance industries rely on narrow slitting lines to create precise strips that fit high-tolerance components.

By matching the correct line type to material characteristics and production requirements, companies achieve faster turnaround, lower scrap rates, and higher customer satisfaction.

Aluminum and Copper Foil Slitting Line: Ultra-Thin Mastery

Processing aluminum and copper foils demands an entirely different approach than conventional steel. These materials are ultra-thin, soft, and highly susceptible to scratches or tension-induced deformation. A dedicated Aluminum/Copper Foil Slitting Line ensures precise slitting without compromising surface integrity.

• Coil Thickness Range: 0.05–0.2 mm

• Line Speed: up to 200 m/min

Foil slitting lines integrate specialized features:

• Anti-scratch rollers: prevent marring or tearing

• Dust-free enclosures: maintain material cleanliness

• Precision tension control: ensures uniform winding and prevents elongation

• High-precision recoilers: maintain even edges and coil shape

Applications range from battery current collectors, capacitor foils, and electronic laminates to decorative aluminum strips for architectural use. High-speed lines must balance tension, speed, and cutting accuracy, a complex engineering challenge solved through sophisticated control systems.

Key Components That Define Performance

Every CTL and slitting line is composed of several critical subsystems. Understanding these components is essential for optimizing performance, reducing downtime, and selecting the right line for your operation.

Decoiler/Uncoiler

The decoiler is the first touchpoint for the coil. It must handle significant coil weights safely while maintaining consistent tension. Heavy-gauge coils require hydraulic or motorized decoilers capable of supporting tens of tons, while thin foils demand gentle, low-inertia uncoilers to prevent stretching or surface damage.

Leveler/Straightener

Flatness is crucial. Straighteners remove curvature, bow, and coil set, ensuring that the sheet is perfectly flat before cutting or slitting. Depending on material thickness, this subsystem may include multiple sets of rolls with precise adjustments. Advanced systems utilize feedback from sensors to continuously correct flatness as the coil progresses through the line.

Feeder/Measuring Rollers

Accurate length measurement is vital for both CTL and slitting operations. Measuring rollers feed real-time length data to the shear or slitter. For high-speed production, optical or encoder-based measurement systems deliver precise, repeatable results even at hundreds of meters per minute.

Shear/Slitter

The heart of the line, the shear or slitter determines cut quality and edge finish. Rotary shears are ideal for continuous, thin materials, while stop-cut hydraulic shears handle heavy plates. Slitters, single or double-head, produce multiple narrow strips from a single coil. Blade material, knife alignment, and arbor precision are critical for reducing burrs and minimizing scrap.

Stacker/Recoiler

Automation downstream ensures efficiency. Stacker systems handle finished sheets from CTL lines, positioning them safely for transport or packaging. Recoilers in slitting lines wind multiple narrow strips, maintaining tension and coil integrity.

Control System

Modern lines rely on PLCs with HMI touchscreens for recipe management, process monitoring, and fault diagnostics. Real-time feedback loops adjust speed, tension, and shear timing, guaranteeing precision across varying material types. Advanced systems also allow integration with enterprise resource planning (ERP) software, enhancing production planning.

Choosing the Right Line for Your Business

Selecting a CTL or slitting line is more than a technical decision—it’s a strategic investment. Key considerations include:

1. Material Type: Steel, aluminum, or copper? Hot-rolled, cold-rolled, or coated? Each requires tailored handling.

2. Thickness and Width Range: Ensure the line can accommodate your full spectrum of materials.

3. Production Volume: High-speed rotary shear lines suit large-scale operations; heavy-gauge stop-cut lines are better for moderate volumes with thick plates.

4. Tolerance Requirements: Ultra-precise cuts demand stopped cutting systems or high-precision foil slitting lines.

5. Automation Level: Consider operator skill levels, downtime costs, and whether you need automated stacking, recoiling, or packaging.

6. Flexibility and Future Growth: Choose a line that can adapt to new materials, thickness ranges, and width requirements without major modifications.

By mapping your operational requirements to machine capabilities, you not only reduce scrap but also improve throughput, minimize downtime, and deliver consistent product quality.

Production Optimization and Maintenance

Even the best line is only as effective as its operation and maintenance. Some best practices include:

• Regular Calibration: Measuring rolls, straighteners, and tension systems should be calibrated to prevent drift.

• Blade Maintenance: Keeping shears and slitter knives sharp reduces burr formation and scrap.

• Tension Monitoring: Continuous feedback ensures foil, thin sheet, and heavy plate are handled without deformation.

• Operator Training: Skilled operators can anticipate material behavior and adjust parameters before errors occur.

• Preventive Maintenance: Scheduled inspections of motors, gearboxes, and hydraulic systems prevent unexpected downtime.

Combining optimized machine setup with trained personnel maximizes ROI and reduces costly production interruptions.

Installation, Commissioning, and Operator Training

Investing in a high-precision Cut-to-Length or Slitting Line is only the first step. Proper installation and commissioning are essential to ensure peak performance from day one. Leading suppliers provide full-service installation, including mechanical assembly, electrical wiring, hydraulic setup, and PLC programming.

On-site commissioning allows operators and engineers to observe the machine in full operation, adjust parameters for the specific coil material, and validate tolerances. Automated sequences, tension profiles, and shear timings are fine-tuned to achieve the desired output quality.

Operator training is equally critical. Even the most advanced system requires skilled personnel who understand the nuances of material behavior, system controls, and maintenance procedures. Comprehensive training programs cover:

• Safety protocols and emergency procedures

• Line setup for different materials and thicknesses

• Real-time monitoring and process adjustment

• Routine maintenance and blade replacement

• Troubleshooting and fault diagnosis

The goal is to create a self-sufficient team that can operate the line efficiently, reduce downtime, and respond proactively to production challenges.

Case Examples: Transforming Productivity Across Industries

Automotive Industry

A leading automotive supplier in the Middle East upgraded to a Rotary Shear CTL line to handle light-gauge galvanized steel for body panels. The new line enabled speeds up to 90 m/min, cutting 30% of production time while reducing scrap by 15%. Automated stacking and precision length control minimized handling damage, improving assembly line efficiency.

Construction and Heavy Fabrication

A steel service center supplying structural plates for bridge construction installed a Heavy Gauge Hot-Rolled CTL line capable of handling 20 mm plates at consistent ±0.5 mm tolerances. The line reduced manual handling, improved worker safety, and accelerated project delivery by weeks.

Electronics and Foil Applications

A battery manufacturer adopted an Aluminum/Copper Foil Slitting Line for ultra-thin foils (0.05–0.2 mm). The precision tension control and dust-free environment ensured no surface defects, while high-speed recoiling maintained production throughput at 200 m/min, meeting the demands of high-volume orders.

These cases illustrate how selecting the right line, combined with proper installation and training, can revolutionize productivity and product quality.

Conclusion: Unlocking the Full Potential of Sheet Metal Processing

Modern Cut-to-Length and Slitting Lines are more than machines—they are productivity platforms. From rotary shear systems handling ultra-thin coils at high speed to heavy-gauge hydraulic CTL lines delivering precise cuts for thick plates, every system has a place in today’s manufacturing landscape.

Key takeaways:

• Precision Matters: Length, flatness, and edge quality are critical to downstream operations.

• Automation is Essential: Integrated PLC control, tension monitoring, and automated stacking reduce labor and errors.

• Flexibility Drives ROI: Lines capable of handling multiple materials, thicknesses, and widths future-proof your investment.

• Support is Critical: Installation, commissioning, operator training, and spare parts availability maximize uptime.

By carefully matching production needs with line capabilities, manufacturers can reduce scrap, improve throughput, and maintain consistent quality across diverse applications.
