Revolutionizing Nutraceutical Manufacturing: Inside the World of ODF Dietary Supplement Film Machines

What Is ODF and Why It Matters

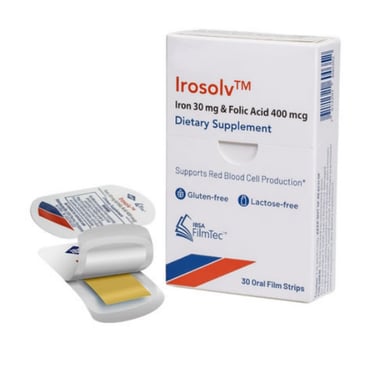

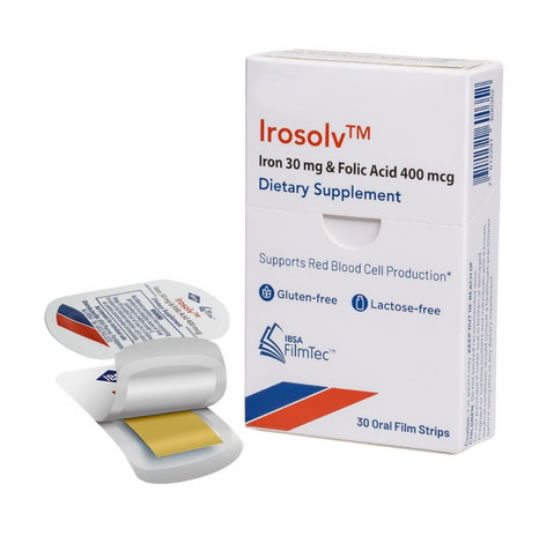

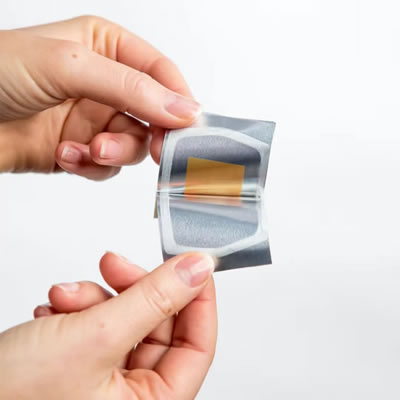

Oral Dissolving Films (ODF) have rapidly emerged as a transformative solution in the nutraceutical and pharmaceutical industries. Designed for sublingual or buccal administration, these thin, flexible strips dissolve quickly in the mouth, delivering active ingredients efficiently—no water, no swallowing.

They’re particularly valuable for children, elderly individuals, and patients with dysphagia. As demand for on-the-go wellness solutions rises, ODF dietary supplements are becoming the delivery method of the future.

The Backbone of ODF Innovation: PPD-ODFM300 Film Production Line

The PPD-ODFM300 ODF Dietary Supplements Film Making Machine represents a leap in technical precision and production consistency. This high-accuracy line is designed to ensure seamless formulation, coating, drying, and film cutting—all within a compact footprint.

Technical Specifications

• Coating Width: Max. 300mm

• Coating Thickness: 0.02-0.1mm

• Coating Speed: Max. 1m/min

• Base Substrate Width: 360mm, Roll Ø ≤ 350mm

• Paper Roll Inner Diameter: 76.2mm

• Power Supply: 380V, 50Hz

• Motor Power: 1.5kW

• Heating Power: 16kW

• Air Pressure: 0.6-0.8Mpa

Built for Precision

Equipped with a cutting-edge PLC and servo control system, this machine achieves high-precision base material feeding. The result? Uniform film thickness and minimal deviation batch to batch.

Smarter Drying = Better Quality

Drying is often the most overlooked—but most critical—aspect of film production. The ODFM300 features an independent hot air circulation drying system with segmented temperature control. This ensures optimal drying without overexposure, protecting sensitive active ingredients.

PPD-OFP120 Film Packaging Machine: Elevating End-to-End Efficiency

Once the film is cut and ready, the next step is seamless packaging—and that’s where the PPD-OFP120 Film Packaging Machine takes the stage. Designed to complement the ODFM300, it automates pouch formation, filling, sealing, and printing.

Specifications

• Film Size: 40mm (L) × 25mm (W), adjustable

• Bag Size: 86mm (L) × 45mm (W), adjustable

• Speed: Up to 120 bags/min

• Bag Material: Easy-peel, heat-sealable laminated film

• Film Roll Ø: ≤320mm, width ≤400mm

• Power Supply: 220V, 50Hz

• Motor Power: 4kW

• Heating Power: 3kW

• Air Pressure: 0.6–0.8Mpa

Integrated Functionality

This packaging unit supports full inline processing—from feeding freshly sliced ODF strips to inserting them directly into pre-formed pouches.

No intermediate steps. No contamination risk. No product waste.

The built-in longitudinal slitting system enables perfect pouch-level cutting for optimized dosing.

The LeonMachinery Advantage

At LeonMachinery, innovation meets reliability. Our machines aren’t just equipment—they’re end-to-end solutions that transform production efficiency, product integrity, and market scalability.

Multi-Industry Flexibility

We serve more than just the dietary supplement industry. Whether you’re in:

• Medical packaging

• Food and beverage

• Hygiene products

• Chemical packaging

We tailor solutions that adapt to your specific materials, throughput needs, and regulatory requirements.

Expand Beyond ODF: Total Packaging and Converting Solutions

LeonMachinery goes beyond dissolving films. Our product ecosystem includes:

• Form Fill Seal Machines

• Flow Wrap Machines

• Shrink Wrap Machines

• Pouch Making Units

We also collaborate with WG Scientech to deliver high-precision web converting equipment and flexographic printing systems for roll-to-roll applications.

Intelligent Control, Smarter Production

All of our systems use integrated servo motors, programmable logic controllers (PLCs), and touch-screen HMIs for enhanced operator control and remote troubleshooting.

No more guesswork. Just real-time diagnostics and actionable insights.

Global Service, Local Understanding

From installation to lifetime maintenance, LeonMachinery supports clients globally. Our multilingual team ensures a smooth experience for clients in North America, Europe, Southeast Asia, and beyond.

Need custom upgrades? We listen. Need quick parts delivery? We deliver.

Final Thoughts: The Future of Functional Films

As consumer demand shifts toward convenient, portable, and rapid-delivery formats, ODF dietary supplements are becoming essential.

And behind every great ODF product is a reliable manufacturing partner.

With LeonMachinery, you’re not just investing in machines—you’re investing in trust, innovation, and scalability.

📞 WhatsApp: +8618136773114
📧 Email: leonxu0317@gmail.com
🌐 LeonMachinery – Converting Technology into Your Competitive Edge
