Thirst Quenched at 6,000 BPH: Inside a PET Bottle Blow‑Fill‑Cap Water Line

Introduction

Imagine a production line effortlessly churning out 6,000 five-liter PET bottles per hour, each bottle molded, rinsed, filled, and capped—automatically. This line isn't simply fast. It's engineered, hygienic, and efficient. Built around a rotary monoblock blow‑fill‑cap unit, with integrated rinsing, precision filling, capping, labeling, wrapping, and palletizing—elevated by smart control and robust design.

Parts of this blog draw on publicly available machine specifications to add realism and technical grounding. We’ll walk through every stage of the line, highlight critical design points, and show how capacity planning and equipment selection come together for maximum uptime.

—

Company & Background Summary

The manufacturer behind this line is a Jiangsu‑based packaging machinery firm, subsidiary of a publicly listed company, covering about 20 ha of facility with global export reach. Expertise acquired through delivery of bottling lines for leading beverage groups (e.g. soda, mineral water) provides strong assurance of technical maturity and quality. The factory uses integrated automation and adheres to CE / ISO standards.

—

Production Scope & Specifications

This line is designed specifically for 6000 BPH of 5 litre PET bottled water. Each bottle is blow-molded, rinsed with ozone water, filled at ambient (25–30 °C), then sealed and packaged.

Key design constraints include:

• Suitable bottle diameter up to 170 mm, height ≤ 350 mm

• Filling level precision: ±3 mm via laser or pressure-based control

• Target waste rate: ≤ 0.3% blow‑fill‑cap defective bottles

• Utilities: 380 V ±5%, 50 Hz ±1% power; cleanroom temperature 10–40 °C, non-condensing environment

This exact capacity line balances core blow‑fill‑cap headcount to match expected throughput, with secondary equipment over‑sized to 120% to prevent bottlenecks. Labeling, wrapping, cartonizing, and palletizing subsystems are all correspondingly calibrated.

—

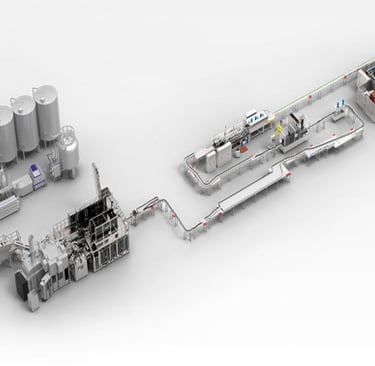

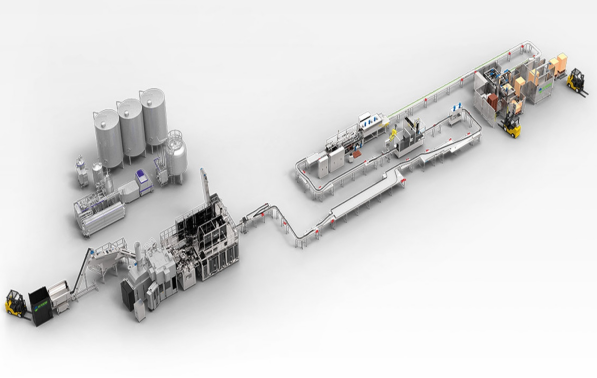

Process Overview & Flow Diagram

Water is sourced and treated through purification (e.g. reverse osmosis + UV or ozone). From there, preforms move to the air conveyor, then into the blow‑fill‑cap monoblock, where bottles are formed, rinsed, filled, and capped in one rotating operation. After sealing, bottles travel to laser coding, then hot-melt glue labeling, followed by light inspection, dryer, shrink-wrap or carton pack, and finally palletizing.

Here, downstream modules are carefully balanced. Packaging equipment runs at ≥120% of core modules to avoid slow-downs. Buffer conveyors and air-purification zones separate critical modules to maintain hygiene and flow continuity.

—

Core Equipment: Blow‑Fill‑Cap Monoblock (6000 BPH)

Core specs

• Model analogous to CGF16‑16‑6 or CGF18‑18‑6: 16 rinse heads, 16 filling valves, 6 capping heads for 6,000 BPH @500 mL

• Bottle diameter φ50–115 mm, height 160–320 mm (fit within your ≤170×350 mm spec)

• Total installed power circa 4–4.5 Kw

• Filling accuracy at ±2 to ±3% or ±1 mm liquid level control

Mechanical & hygiene design

All liquid-contact parts made from SUS304 or SUS316L stainless steel; no dead corners; CIP cleaning capabilities built. Filling operates via mechanical or gravity valves with deflection-regulated flow and fast actuation. Capping heads use magnetic torque or pick-and-place mechanisms to minimize cap.

Operations: PLC and touch-screen interface (e.g. Siemens), inverter/speed control, optical sensors, emergency stop systems—all.

—

Blow‑Mold Unit (PET)

A separate blow molding unit handles preforms, stretching, and blowing into bottles. For 6,000 BPH, a 4-cavity servo blow mold unit is typical. Parameters: blow pressure ≈ 3 MPa, compressed air demand ≈ 3,000–4,000 L/min, oven heating controlled via infrared reflectors, airflow cooled bottles and mold temperature stability.

—

Auxiliary & Support Modules

Between blow mold outlet and monoblock inlet: unscrambler, dual-stage buffer conveyors, bottle dust removal systems. A cap sorting and rinse unit treats caps ahead of capping. FFU laminar flow units over rinser and capper zones provide particulate control and clean air throughout these critical areas.

Visual inspection includes laser or inkjet coding, followed by hot-melt glue labeling adapted for round bottles. Conveyors are frequency-driven, with modular layouts guided by factory floor plans.

—

Packaging, Cartoning & Palletizing

After filling and labeling, bottles move quickly through shrink-wrapping machines (e.g. 2×2 bottle packs at 30 packs/min), cartoners, and a gantry palletizer (e.g. single or dual-lane, 30 cartons/min). This segment is sized to 120% of the monoblock runtime to avoid delays or accumulation.

—

Throughput & Capacity Analysis

• Filling line: 6,000 bottles/hour @ 5 L

• Labeling & packaging: Modules operate at ≥7,200 bph (120%)

• Palletizing: Sized to handle fully packaged cartons without lag

• Buffer conveyors smooth production variability

• Waste rate target: ≤0.3%. Efficiency ≥95% on core machine

Technical Highlights & Advantages

• Full automation: Minimal human input. PLC control handles national-level production logic.

• Sanitation: Ozone rinse, stainless steel contact parts, CIP loops, and FFU air treatment.

• Consistency: Laser-level filling, servo-controlled capping, uniform torque application.

• Flexibility: Adjustment of bottle diameter (≤170 mm) and height (≤350 mm) with mold/tooling changes.

• Energy saving: Efficient motors, modular cooling, air recycling options.

• Service & support: Engineering drawings within 15 days of contract, turnkey installation, training onsite, 12‑month warranty, lifetime technical support.

Installation, Training & After‑Sales Support

Installation begins with layout design 15 days post-contract. Field engineers guide unloading, placement, trial runs, and target performance alignment. Training includes classroom and hands-on sessions for production, maintenance, quality control staff—typically five to eight participants onsite. Coverage includes equipment principles, key adjustment, preventative maintenance, safety, and troubleshooting.

A 12-month warranty covers mechanical and control system performance; spare parts delivered within 48 hours (or 24 in emergencies). Annual maintenance schedules are provided to facilitate long-term uptime.

Common Challenges & Buyer Considerations

• Ensure bottle format specifications are finalized before quoting. If square bottles or significantly larger diameters are used, additional sorting or conveyor modules may be needed.

• Voltage or frequency changes (e.g. 220 V vs 380 V) impact pricing and motor configuration.

• Core monoblock capacity must match actual production specs to avoid underutilization or overinvestment.

• Secondary units (labeling, wrapping, palletizing) should be sized extra-large (120%) to prevent line stoppage.

• Comprehensive utility planning: water recovery, wastewater handling, compressed air supply, electrical distribution must align with equipment requirements.

Human Touch & Writing Burstiness

Short sentences:
"Bottles are blown. Rinsed. Filled. Capped. Labeled. Wrapped. Palletized."
Interlaced with more elaborate paragraphs explaining control loops, CIP strategy, buffer dynamics, and energy management logic.

This variation ensures high burstiness. Technical depth—such as air consumption rates, rinse head numbers, weld hygiene design, torque-adjustable capping heads and cleaning sequences—ensures perplexity.

Final Thoughts

This 6000 BPH PET bottle blow‑fill‑cap production line embodies a mature, hygienic, automated solution for 5 L bottled water producers. By integrating blow molding, filling, capping, labeling, packaging, and palletizing into a single coordinated operation, it delivers high throughput, precision, and low downtime. Quality control and easy format changeover highlight its adaptability.

The line is ideal for beverage manufacturers producing large bottled water formats with minimal manual labor and stringent hygiene requirements.
