Revolutionizing Meter Technology: The Future of Ultrasonic Water and Heat Metering Solutions

Introduction: The Rise of Ultrasonic Metering Technology

In an era where accuracy, efficiency, and sustainability are paramount, ultrasonic metering technology has emerged as a game-changer in the measurement of water and heat usage. Unlike traditional mechanical meters, ultrasonic water meters and heat meters leverage sound waves to measure flow with unparalleled precision. This blog will explore the various components and types of ultrasonic meters, including ultrasonic water meter sensors, heat meters, and their key components such as circuit boards, sensors, and electric valves.

What Are Ultrasonic Water Meters?

Ultrasonic water meters represent a significant leap forward in water measurement technology. These devices use sound waves to detect the flow of water within pipes, eliminating the mechanical moving parts that often lead to wear and inaccuracies in traditional meters. The ultrasonic water meter body is often made from materials such as stainless steel or brass, offering durability and corrosion resistance, even in harsh environments.

The ultrasonic sensor is the core of the system, sending and receiving sound waves through the water flow. The time it takes for the sound waves to travel is used to calculate the flow rate, making these meters incredibly accurate, with minimal maintenance required.

Ultrasonic Heat Meters: Accurate and Reliable Heat Measurement

Much like their water counterparts, ultrasonic heat meters are used for measuring the amount of thermal energy consumed in a given system. These meters utilize the same ultrasonic technology to measure the flow of heat transfer fluids, typically in heating or cooling systems. The ultrasonic heat meter body is similar in design to the water meter, but with modifications to handle higher temperatures and pressures.

These meters are widely used in district heating systems, where they ensure that energy consumption is accurately measured, helping to improve energy efficiency and reduce costs for consumers. The ability to precisely measure the flow of heat means that billing can be based on actual consumption rather than estimated usage, a significant advantage for both consumers and utility providers.

Components of Ultrasonic Meters

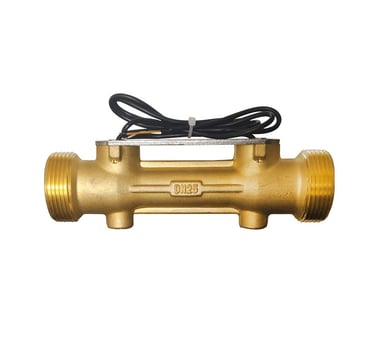

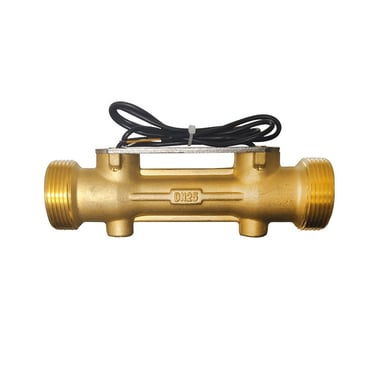

Ultrasonic Water Meter Body: Brass vs. Stainless Steel

The body of an ultrasonic water meter is just as important as the technology inside. The material chosen for the body affects the meter's longevity, performance, and resistance to corrosion. Brass and stainless steel are the two most common materials used for ultrasonic water meter bodies. Brass offers excellent machinability and a long lifespan, while stainless steel is known for its superior corrosion resistance, making it ideal for harsh or corrosive environments.

Ultrasonic Water Meter Sensor: The Heart of the System

The sensor in an ultrasonic water meter plays a crucial role in measuring the flow of water. It sends and receives ultrasonic sound waves, and the time difference between the emitted and received waves is used to calculate the flow rate. The accuracy of the sensor is essential, as even small errors can result in incorrect readings.

PCB Circuit Board: The Brain of the Meter

The PCB (printed circuit board) in an ultrasonic meter connects and integrates the different components of the system, including the sensors, power supply, and data processing units. A high-quality PCB ensures that the meter operates reliably and efficiently over time. It’s important for the PCB to be durable and resistant to environmental factors such as moisture, temperature fluctuations, and vibration.

Advanced Metering Solutions: From Design to Digital Conversion

As technology advances, the need for more sophisticated components becomes increasingly important. Time-to-digital converters (TDCs) are one such innovation that plays a pivotal role in ultrasonic metering systems. These chips convert the time difference between the transmitted and received signals into a digital output, enabling more precise and faster calculations.

In addition to TDCs, electric valve motor actuators and electric control valve bodies are increasingly integrated into metering systems to enable automatic flow control based on real-time readings. These actuators allow for the regulation of water or heat flow without human intervention, offering significant advantages in terms of efficiency and automation.

Large Diameter Ultrasonic Water Meters: A Growing Demand

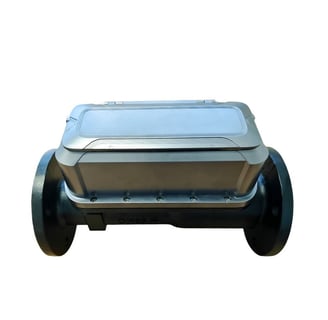

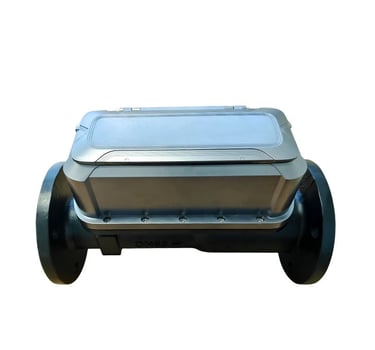

With the increasing demand for large-scale water metering solutions, large diameter ultrasonic water meters are becoming more common. These meters are designed to measure the flow of water in larger pipes, typically used in industrial applications or municipal water systems. The large diameter ultrasonic water meter body is designed to handle higher flow rates and larger volumes, while still maintaining the same level of accuracy and reliability as smaller meters.

These meters are often used in water distribution networks, where they help monitor the flow and ensure that resources are used efficiently. The integration of advanced sensors and digital technology in large diameter meters helps reduce energy consumption and water wastage, making them a key tool in modern water management.

Temperature Sensors: Enhancing Accuracy in Heat Meters

Temperature sensors are an essential component of ultrasonic heat meters, as they measure the temperature of the heat transfer fluid in the system. The combination of flow and temperature readings allows for the accurate calculation of the thermal energy being consumed. These sensors must be highly accurate and durable, as even small discrepancies in temperature measurement can lead to significant billing errors.

In many heat meter applications, temperature sensors are integrated into the ultrasonic meter body, offering a compact and efficient solution for energy measurement. The sensors are often made from materials that can withstand high temperatures and harsh operating conditions.

The Role of Electric Valves in Ultrasonic Metering Systems

Electric valves and actuators play an increasingly important role in modern ultrasonic metering systems. These components allow for the automatic regulation of water or heat flow based on real-time readings from the ultrasonic sensors. By integrating electric valves with ultrasonic meters, systems can be optimized for maximum efficiency and responsiveness.

For example, in a district heating system, electric control valves can adjust the flow of hot water based on current demand, ensuring that energy is distributed efficiently. This level of automation helps reduce energy waste and improve the overall performance of heating systems.

Conclusion: The Future of Ultrasonic Metering

The future of ultrasonic metering technology is bright. As more industries seek to improve their efficiency and sustainability, the demand for accurate, reliable, and automated metering solutions will continue to grow. Ultrasonic water meters and heat meters offer a solution that combines precision, durability, and ease of use, making them ideal for a wide range of applications.

With continuous advancements in sensor technology, PCB design, and digital conversion, ultrasonic metering systems will only become more sophisticated and capable. Whether for residential, industrial, or municipal applications, ultrasonic meters are poised to revolutionize the way we measure and manage water and heat consumption.
